Product Description

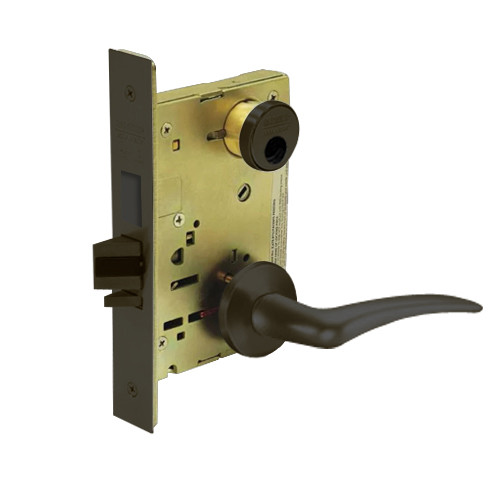

The Sargent LC-8224-LNA-10B-RH is a 8200 Series Hotel Guest mortise lock in Oil Rubbed Bronze (US10B/613). Guest key overrides deadbolt. Emergency and construction master keys available.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8224-LNA-10B-RH | |
| LC | Interchangeable Core prep |
| 8224 | Series 8200, Hotel Guest function |
| LNA | Trim/lever design: LNA Lever Trim |
| 10B | Finish: Oil Rubbed Bronze |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8224-LNA-10B-RH |
| Series | Sargent 8200 |
| Function | Hotel Guest |
| Trim / Lever | LNA Lever Trim |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Hotel Guest function — Guest key overrides deadbolt. Emergency and construction master keys available.
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Series 8200
Finish Oil Rubbed Bronze
Trim Lever
Mount Type Mortise
