Product Description
The commercial function mortise lock — built for the openings that matter most.

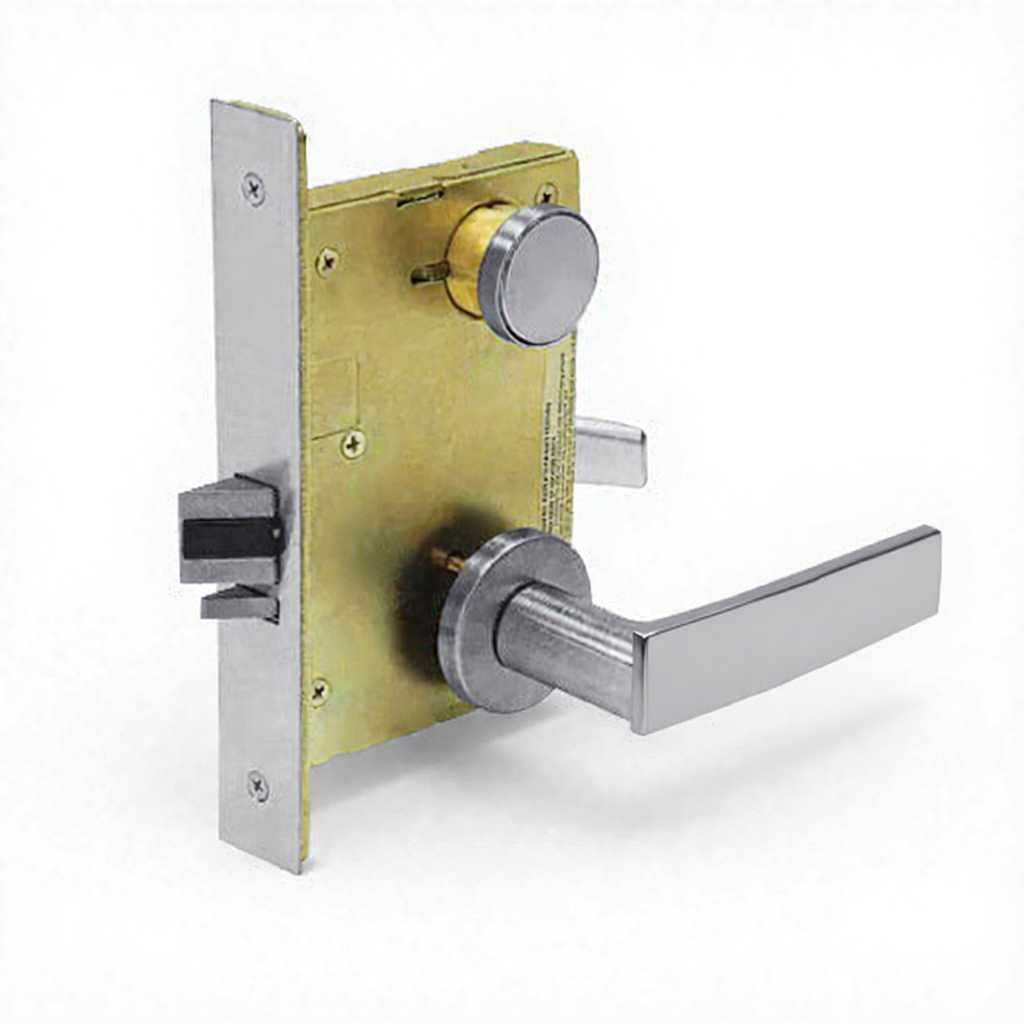

The Sargent LC-8224-LNP-3 is a commercial function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades.
| SKU Breakdown: LC-8224-LNP-3 | |
| LC | Interchangeable Core prep |
| 8224 | Series 8200, Hotel Guest function |
| LNP | Trim code: LNP |
| 3 | Finish code: 3 |
This one comes with LN Rose, P Lever in Bright Brass — the classic 03 finish. Traditional, formal, and still specified on government buildings, courthouses, and historic renovations.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LN Rose, P Lever — Sargent commercial trim
- Bright Brass finish
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
Free Expert Support — Not sure which function, finish, or trim you need? Call (877) 365-5625 and talk to a real locksmith — not a call center. We've spec'd Sargent hardware on thousands of commercial jobs and we'll make sure you order the right product the first time.

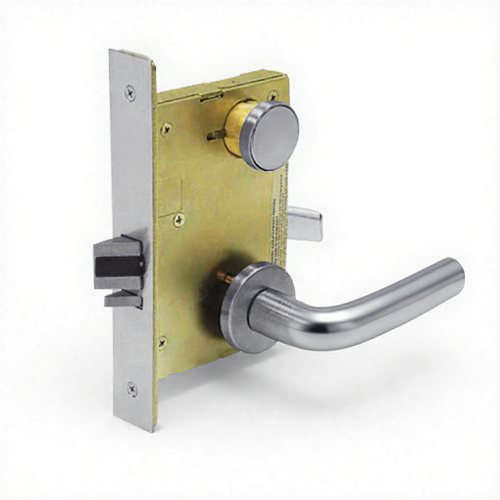

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
