Product Description
The Sargent LC-8224-WTL-4 is a 8200 Series mortise lock in Satin Brass (US4/606). Built to ANSI/BHMA Grade 1 standards with a heavy-duty cast stainless steel chassis designed for high-traffic commercial applications.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8224-WTL-4 | |
| LC | Interchangeable Core prep |
| 8224 | Series 8200, Hotel Guest function |
| WTL | Trim/lever design: WT Escutcheon, L Lever |
| 4 | Finish: Satin Brass |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8224-WTL-4 |
| Series | Sargent 8200 |
| Trim / Lever | WT Escutcheon, L Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Satin Brass (US4/606) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

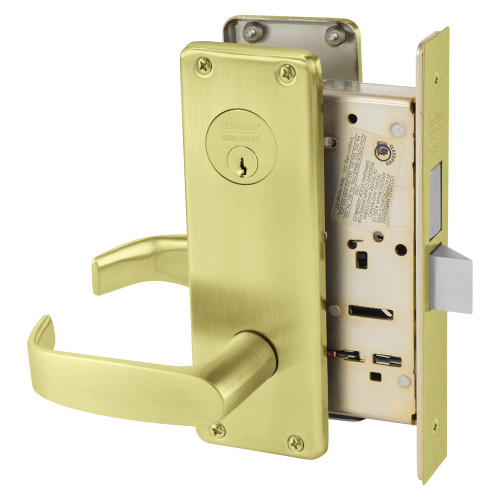

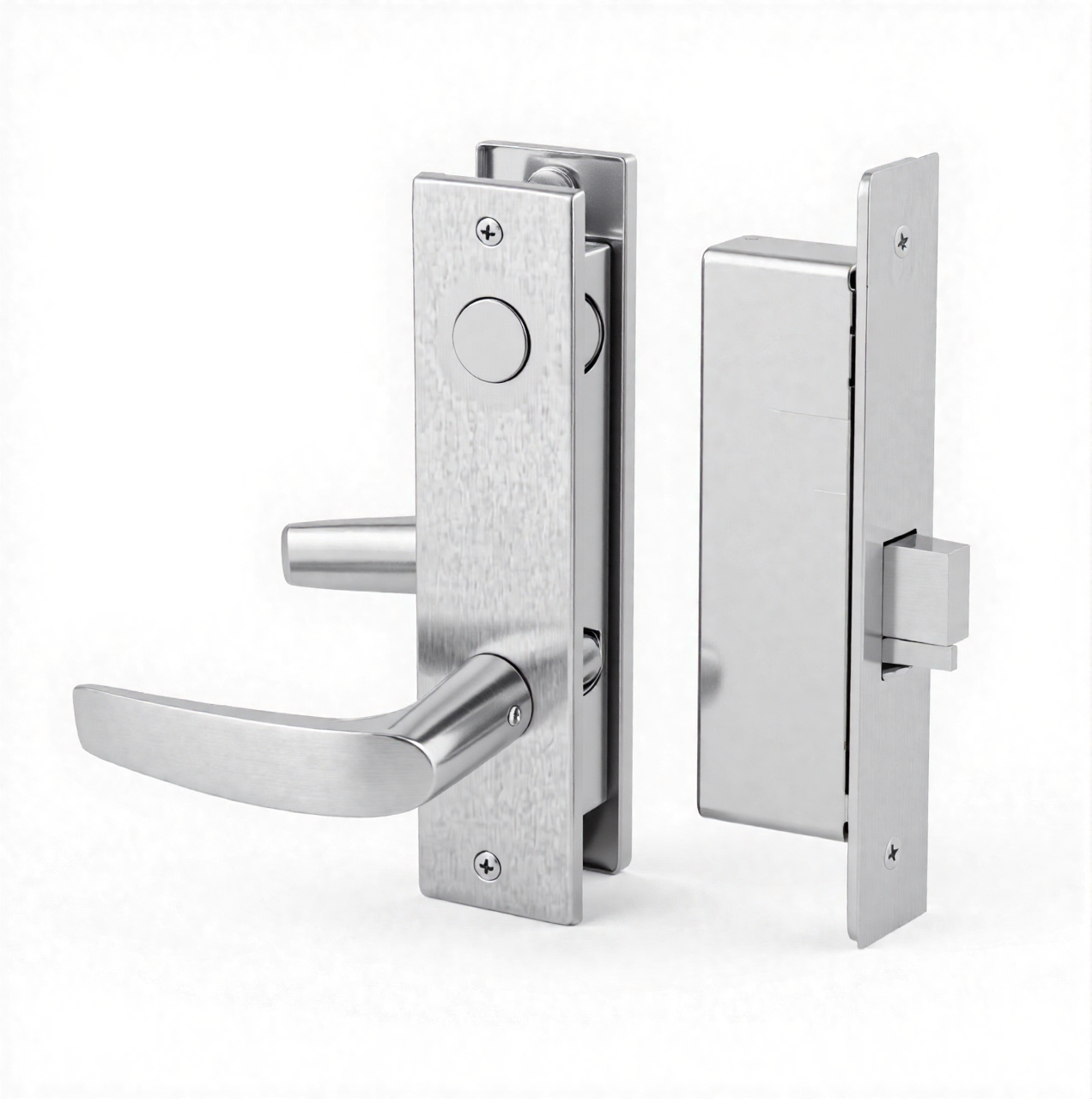

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
