Product Description

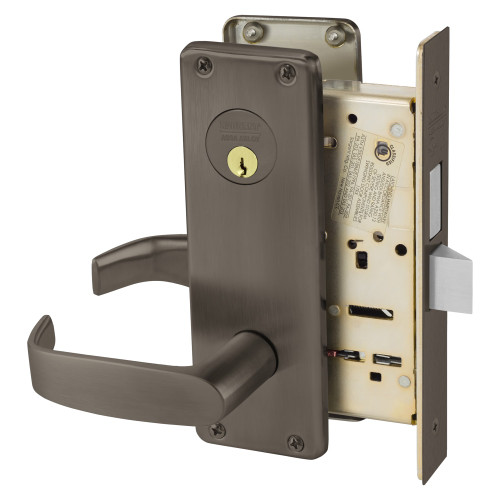

The Sargent LC-8225-LE1L-10B is a 8200 Series Dormitory mortise lock in Oil Rubbed Bronze (US10B/613). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8225-LE1L-10B | |
| LC | Interchangeable Core prep |
| 8225 | Series 8200, Dormitory function |
| LE1L | Trim/lever design: LE1 Escutcheon, L Lever |
| 10B | Finish: Oil Rubbed Bronze |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8225-LE1L-10B |
| Series | Sargent 8200 |
| Function | Dormitory |
| Trim / Lever | LE1 Escutcheon, L Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside. Inside a
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

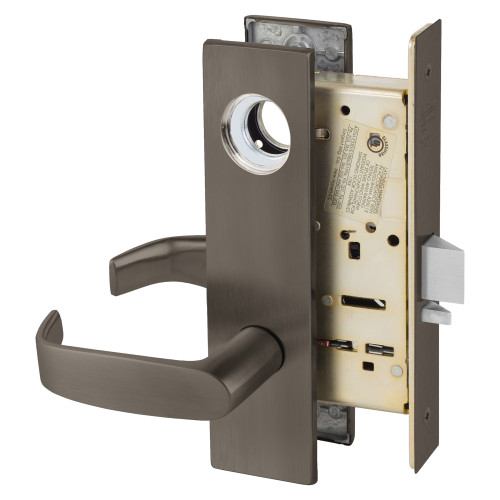

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
