Product Description
Dormitory function gives occupants thumbturn control from inside — lock and unlock the outside lever without a key. But there's always a key override from outside so the RA or maintenance can get in.
The Sargent LC-8225-LW1L-26 is a Dormitory function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Dormitory function — inside thumbturn controls the outside lever. Key override from outside for maintenance and emergencies.
| SKU Breakdown: LC-8225-LW1L-26 | |
| LC | Interchangeable Core prep |
| 8225 | Series 8200, Dormitory function |
| LW1L | Trim code: LW1L |
| 26 | Finish: Bright Chrome |
This one comes with LW1 Escutcheon, L Lever in Bright Chrome — the high-polish 26 finish that makes a statement in upscale lobbies, executive suites, and retail environments. It shows fingerprints more than satin, but the visual impact is worth it in the right application.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, L Lever — Sargent commercial trim
- Bright Chrome finish
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every lock ships brand new in factory-sealed packaging with the full manufacturer warranty. We've been selling and installing Sargent hardware for over 20 years — if you need help specifying the right lock for your opening, call us at (877) 365-5625. We speak locksmith.

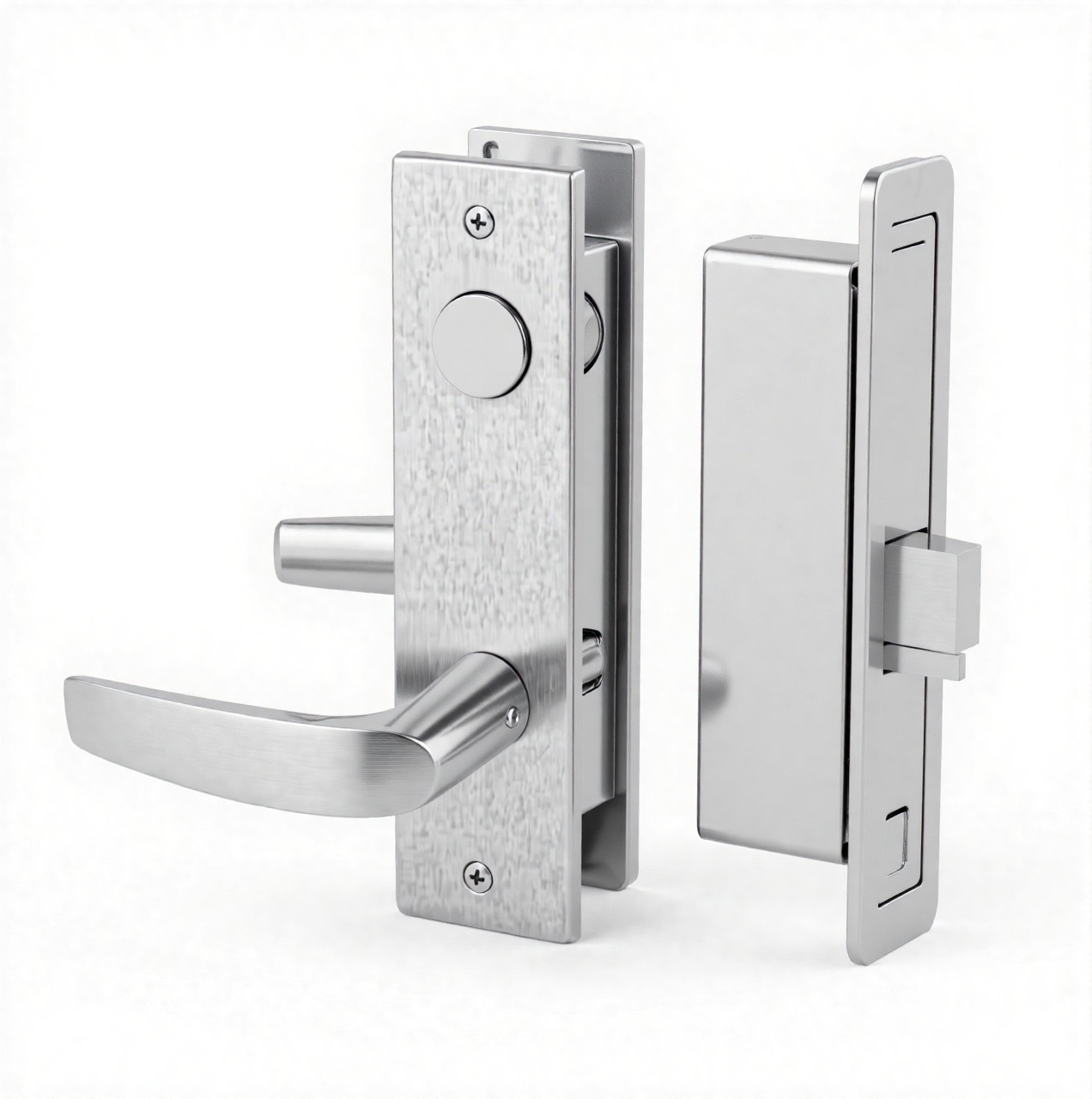

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
