Product Description
The Sargent LC-8226-LNP-32D is a 8200 Series mortise lock in Satin Stainless (US32D/630). Built to ANSI/BHMA Grade 1 standards with a heavy-duty cast stainless steel chassis designed for high-traffic commercial applications.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8226-LNP-32D | |
| LC | Interchangeable Core prep |
| 8226 | Series 8200, Function code function |
| LNP | Trim/lever design: LNP Lever Trim |
| 32D | Finish: Satin Stainless |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8226-LNP-32D |
| Series | Sargent 8200 |
| Trim / Lever | LNP Lever Trim |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

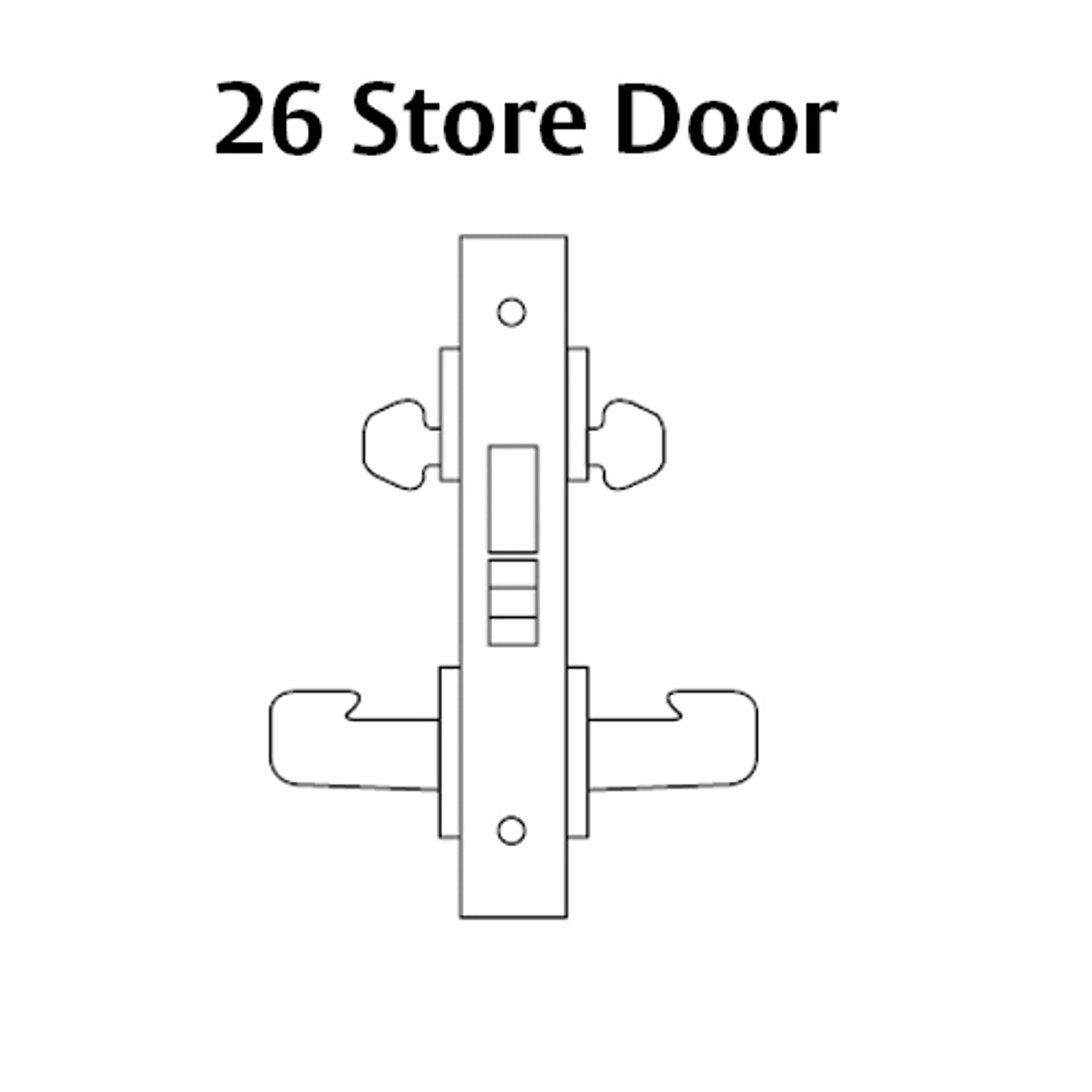

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
