Product Description
The Sargent LC-8227-LW1L-32D is a 8200 Series Storeroom mortise lock in Satin Stainless (US32D/630). Outside lever is always locked — key required for every entry. Inside lever is always free for exit.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8227-LW1L-32D | |
| LC | Interchangeable Core prep |
| 8227 | Series 8200, Storeroom function |
| LW1L | Trim/lever design: LW1 Escutcheon, L Lever |
| 32D | Finish: Satin Stainless |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8227-LW1L-32D |
| Series | Sargent 8200 |
| Function | Storeroom |
| Trim / Lever | LW1 Escutcheon, L Lever |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Storeroom function — Outside lever is always locked — key required for every entry. Inside lever is a
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

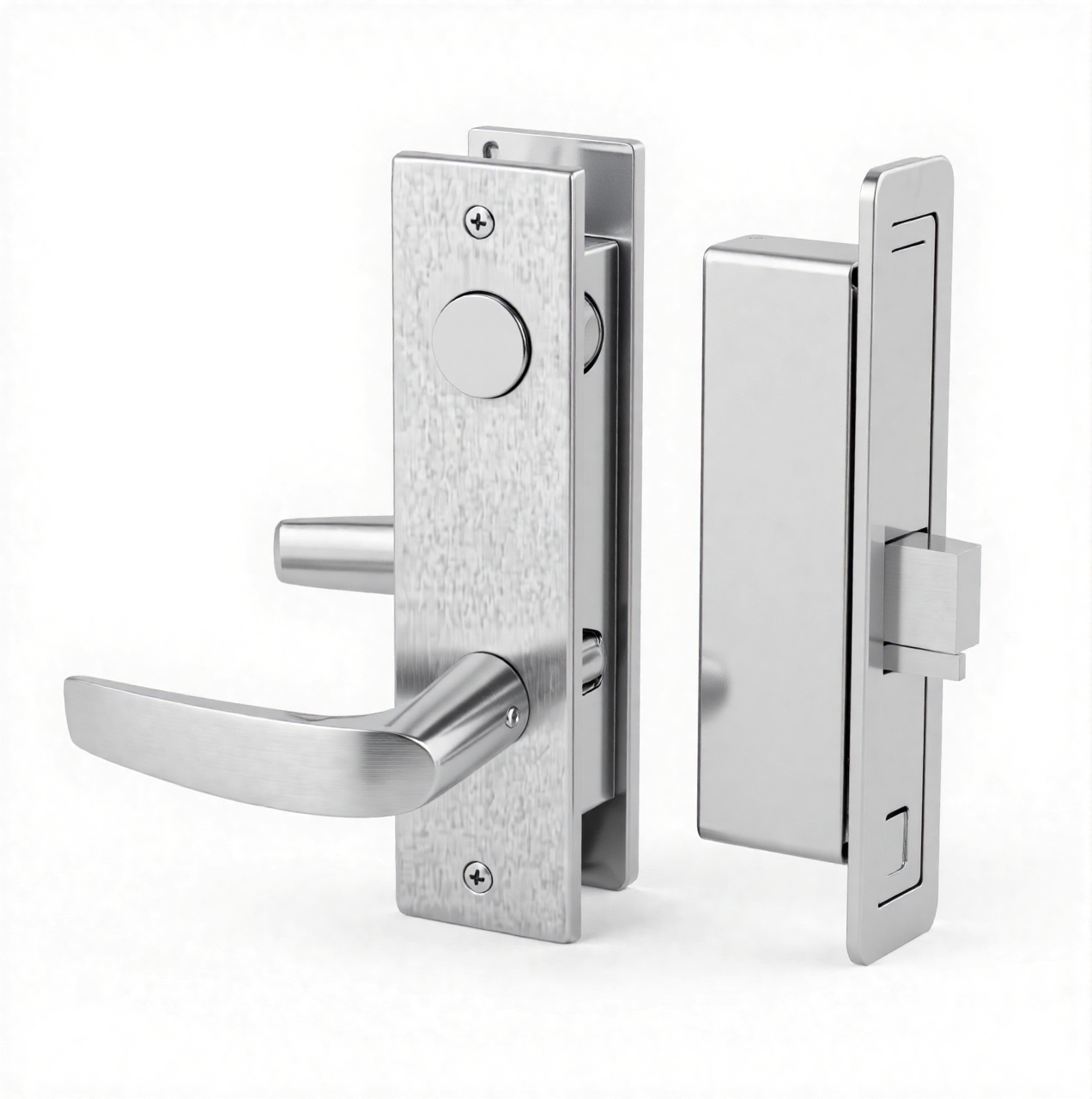

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
