Product Description
Designed for dorm rooms, residential care facilities, and assisted living — the occupant controls the lock from inside, but staff can always enter with a key from outside.

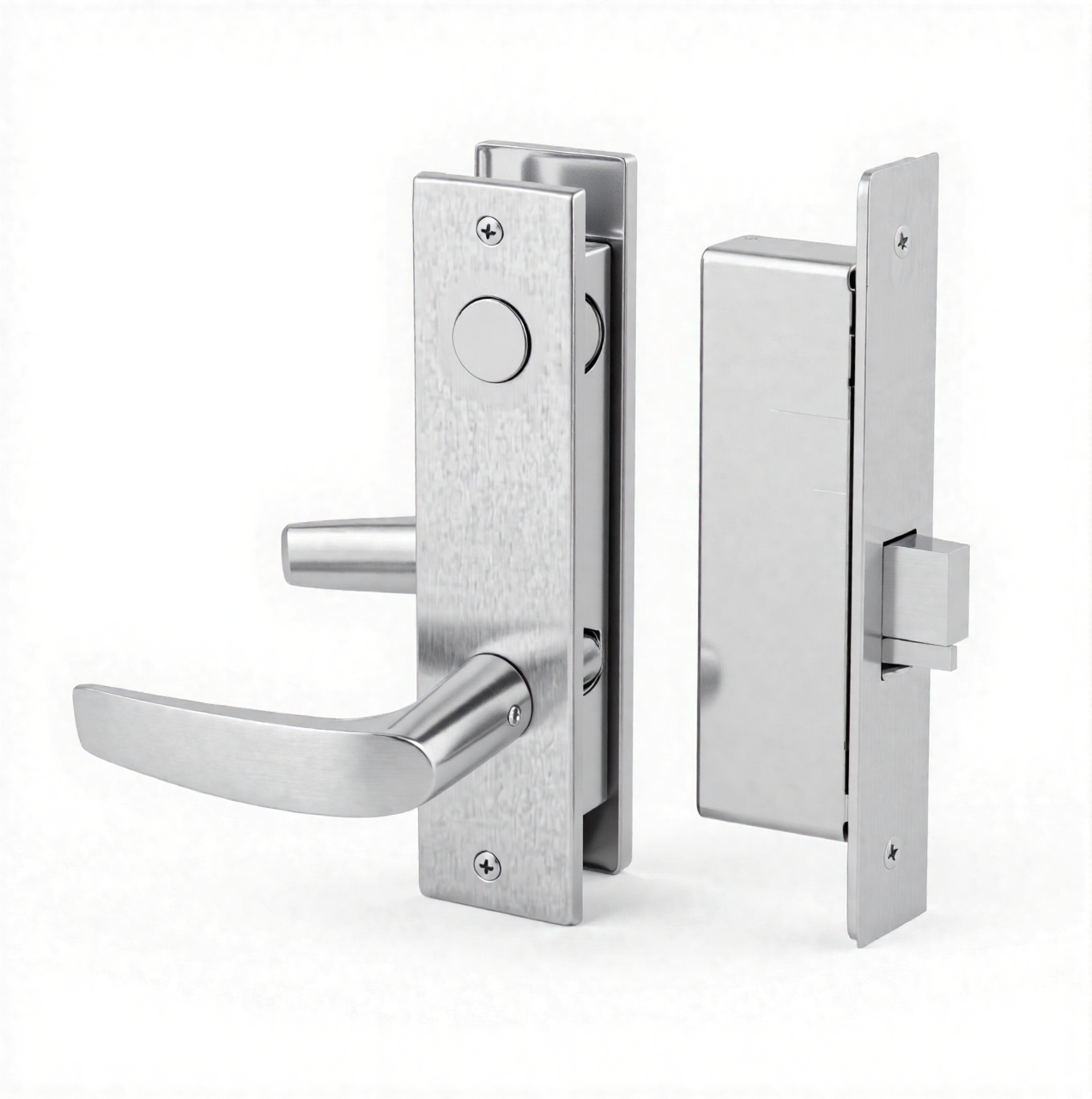

The Sargent LC-8245-LE1E-26D is a Dormitory function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Dormitory function — inside thumbturn controls the outside lever. Key override from outside for maintenance and emergencies.
This one comes with LE1 Escutcheon, E Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LE1 Escutcheon, E Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
- Field reversible — works on left or right hand doors without modification
