Product Description

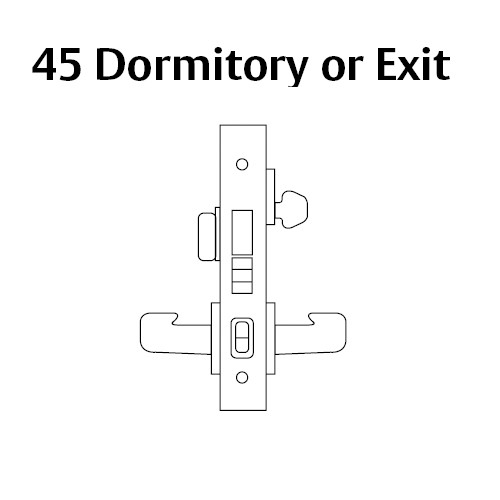

The Sargent LC-8245-LNW-04 is a 8200 Series Dormitory mortise lock in Satin Brass (US4/606). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8245-LNW-04 | |
| LC | Interchangeable Core prep |
| 8245 | Series 8200, Dormitory function |
| LNW | Trim/lever design: Lever |
| 04 | Finish: Satin Brass |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8245-LNW-04 |
| Series | Sargent 8200 |
| Function | Dormitory |
| Trim / Lever | Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Mortise |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside. Inside a
- Satin Brass (US4/606) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
