Product Description

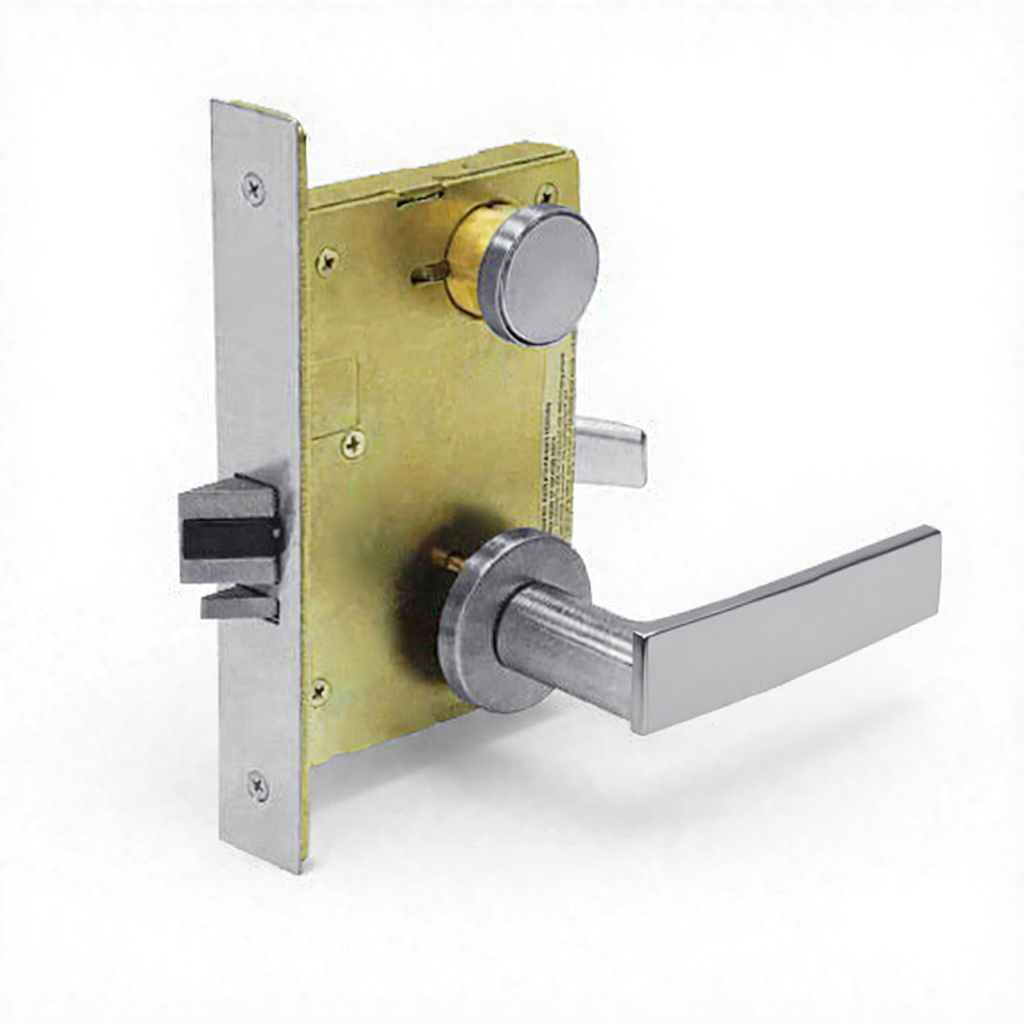

The Sargent LC-8255-LNP-3 is a 8200 Series Entry/Office mortise lock in . Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8255-LNP-3 | |
| LC | Interchangeable Core prep |
| 8255 | Series 8200, Entry/Office function |
| LNP | Trim code: LNP |
| 3 | Finish code: 3 |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8255-LNP-3 |
| Series | Sargent 8200 |
| Function | Entry/Office |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Entry/Office function — Key locks and unlocks the outside lever. Inside lever is always free for exit. C
- finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
