Product Description
The Sargent LC-8270-12V-LNA-10B-RH is a 8200 Series Fail Safe mortise lock in Oil Rubbed Bronze (US10B/613). Unlocks on power loss for life safety egress.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8270-12V-LNA-10B-RH | |
| LC | Interchangeable Core prep |
| 8270 | Series 8200, Institution function |
| 12V | Voltage: 12V |
| LNA | Trim code: LNA |
| 10B | Finish: Oil Rubbed Bronze |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8270-12V-LNA-10B-RH |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

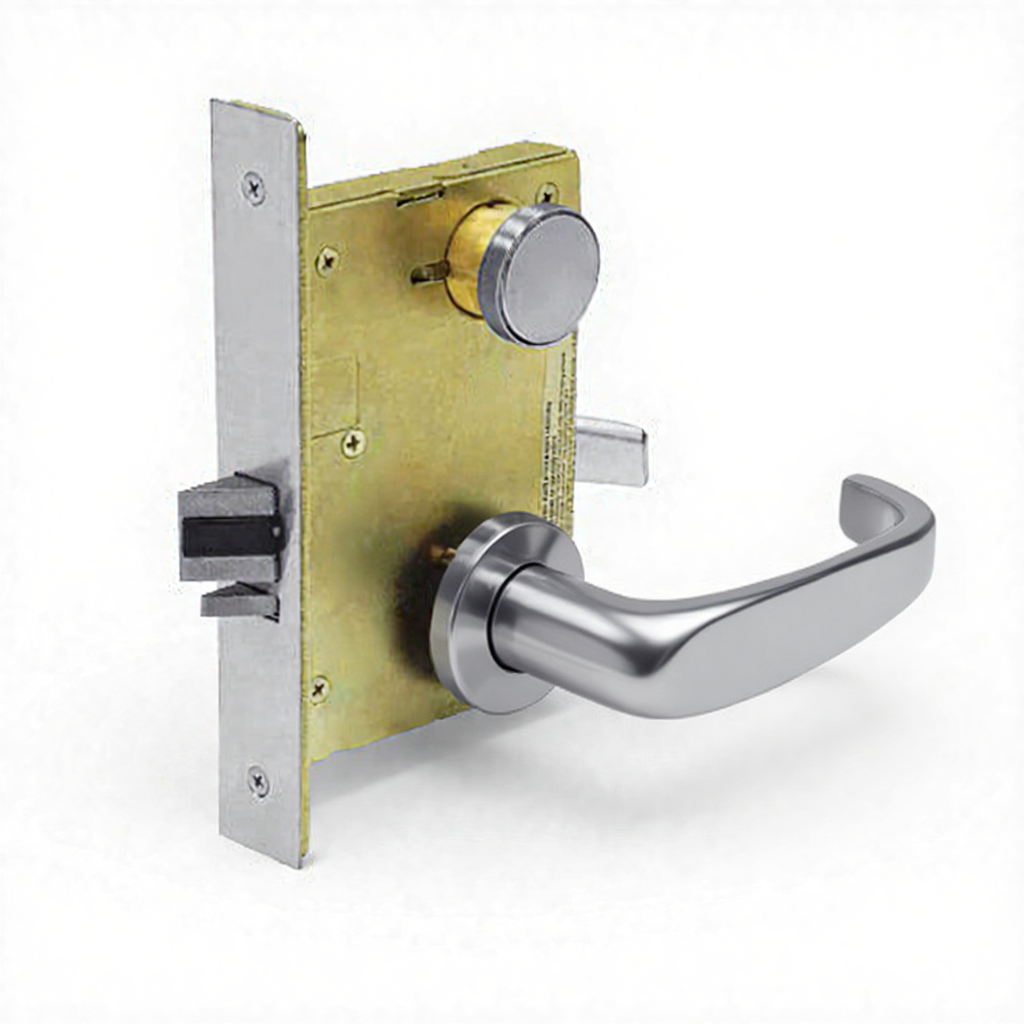

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
