Product Description
The Sargent LC-8270-24V-LNE-32D is a 8200 Series Fail Safe mortise lock in Satin Stainless (US32D/630). Unlocks on power loss for life safety egress.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8270-24V-LNE-32D | |
| LC | Interchangeable Core prep |
| 8270 | Series 8200, Institution function |
| 24V | Trim/lever design: LN Rose, E Lever |
| LNE | Finish: Satin Stainless |
| 32D | Configuration modifier |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8270-24V-LNE-32D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Trim / Lever | LN Rose, E Lever |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

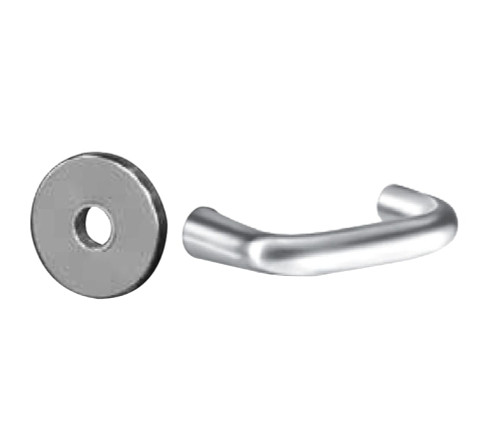

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
