Product Description
The Sargent LC-8271-24V-LNP-4 is a 8200 Series Fail Secure mortise lock in Satin Brass (US4/606). Remains locked on power loss. Key override always available.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8271-24V-LNP-4 | |
| LC | Interchangeable Core prep |
| 8271 | Series 8200, Classroom Security function |
| 24V | Trim/lever design: LN Rose, P Lever |
| LNP | Finish: Satin Brass |
| 4 | Configuration modifier |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8271-24V-LNP-4 |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Trim / Lever | LN Rose, P Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Satin Brass (US4/606) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

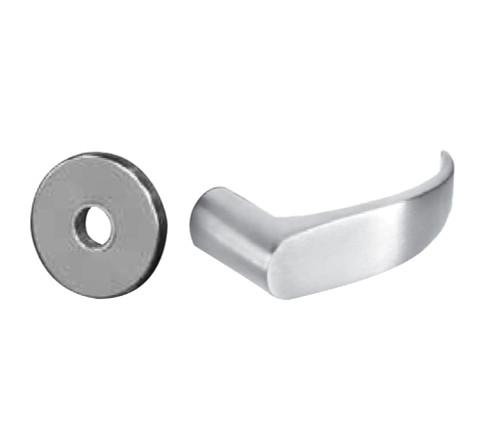

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
