Product Description
The Sargent LC-8272-24V-LNA-26D-RH is a 8200 Series Fail Safe mortise lock in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8272-24V-LNA-26D-RH | |
| LC | Interchangeable Core prep |
| 8272 | Series 8200, Fail Safe function |
| 24V | Trim/lever design: LN Rose, A Lever |
| LNA | Finish: Satin Chrome |
| 26D | Configuration modifier |
| RH | Right Hand |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8272-24V-LNA-26D-RH |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Trim / Lever | LN Rose, A Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

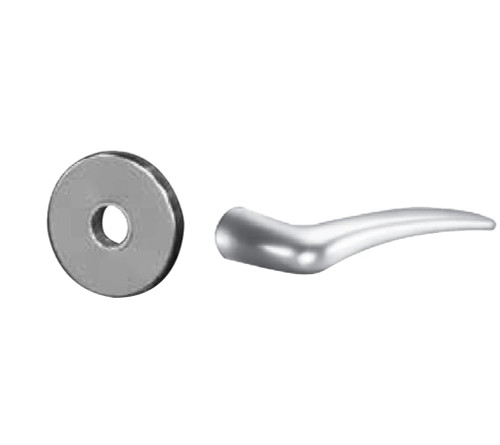

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
