Product Description

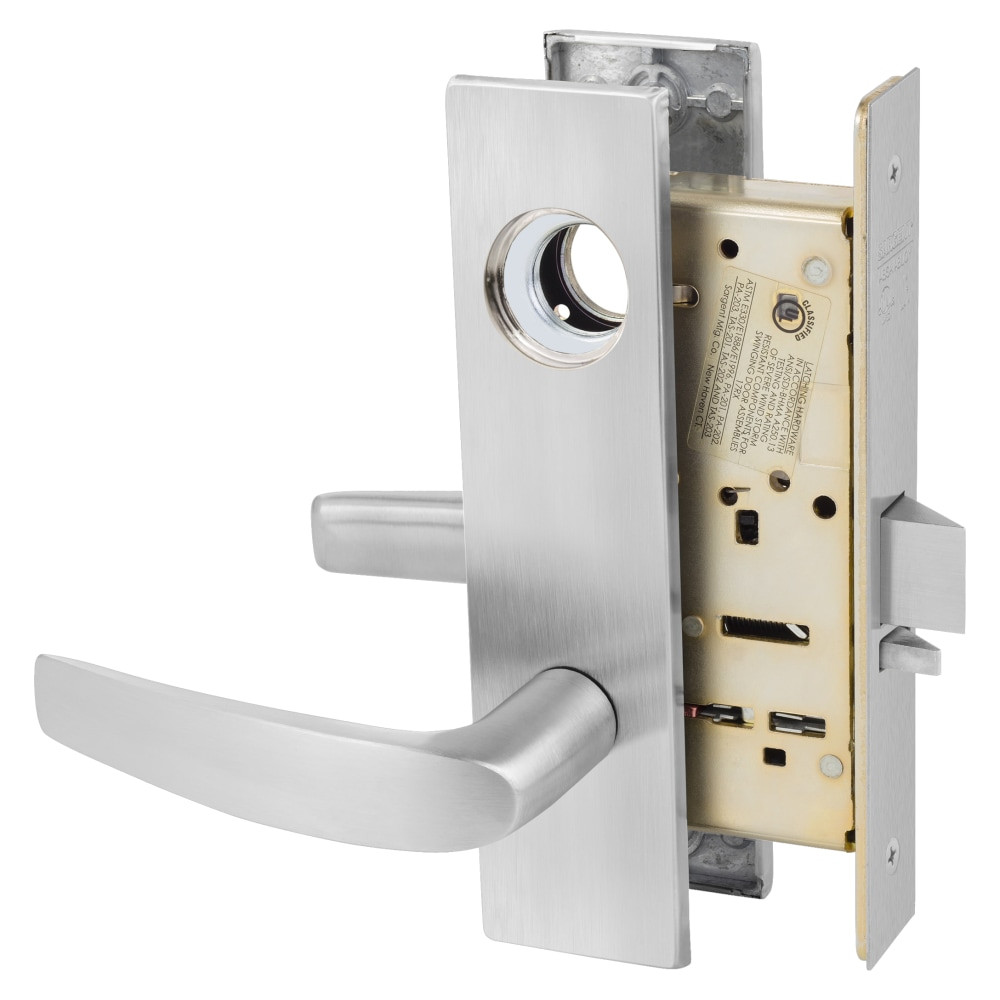

The Sargent LC-8289-LW1B-26D is a 8200 Series mortise lock in Satin Chrome (US26D/626). Built to ANSI/BHMA Grade 1 standards with a heavy-duty cast stainless steel chassis designed for high-traffic commercial applications.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LC-8289-LW1B-26D | |
| LC | Interchangeable Core prep |
| 8289 | Series 8200, Function code function |
| LW1B | Trim code: LW1B |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LC-8289-LW1B-26D |
| Series | Sargent 8200 |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
