Product Description

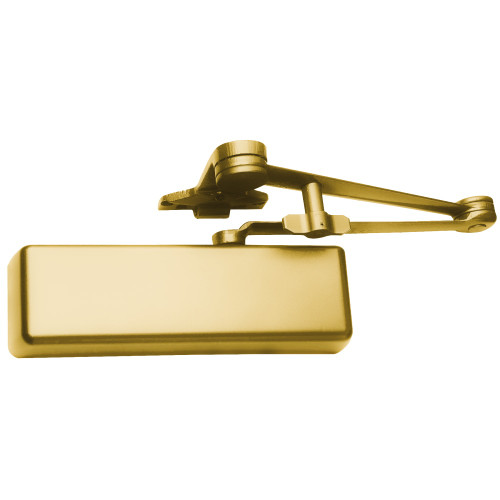

LCN 4111 with Spring Hold Open Cushion Arm in Bright Brass
The LCN 4111 combines a heavy-duty closer with a built-in door stop — the arm itself acts as the hold-open device. Eliminates the need for a separate floor stop or wall bumper, which is why it's the default spec for schools, hospitals, and government buildings. Ships in Bright Brass finish — for openings with brass hardware and trim.
Pro-Tip from Our Locksmiths: The 4111's integral stop holds the door at a specific angle — usually around 90-110 degrees depending on the arm. If you need hold-open at a wider angle, check the arm style. The HCUSH (Hold Open Cushion) arm gives you adjustable hold-open with cushion stop. The standard CUSH arm gives cushion stop without hold-open.
| Brand | LCN (Allegion) |
| Part Number | 4111-SHCUSH-RH-BRASS |
| Series | LCN 4111 |
| Arm Type | Spring Hold Open Cushion Arm |
| Finish | Bright Brass |
| Handing | Right Hand (RH) |
| Grade / Duty | Heavy Duty |
| Mount Type | Surface |
| Fire Rating | Non Fire Rated |
| UL Listed | Yes — UL Listed for fire-rated door assemblies |
| Spring Power | Size 1-6 |
| Warranty | 3 years limited manufacturer's warranty |
- Integral door stop eliminates separate floor/wall stops
- Hold-open available in cushion arm options (HCUSH)
- Cast iron body, full hydraulic control, Size 1-6
- Non-handed closer body — arm style determines mounting
Works With: Updated version of the LCN 4110. Same mounting footprint. For replacement parts, arms, and covers, search LCN 4111 on our site.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Limited lifetime warranty on closer bodyProduct Videos
Custom Field
Product Type Door Closer
Function Heavy Duty
Series 4111
Finish Bright Brass
Trim Spring Hold Open Cushion Arm
Mount Type Surface
Monitoring Right Hand (RH)
Mode Single Door
Fire Rated Non Fire Rated
