Product Description

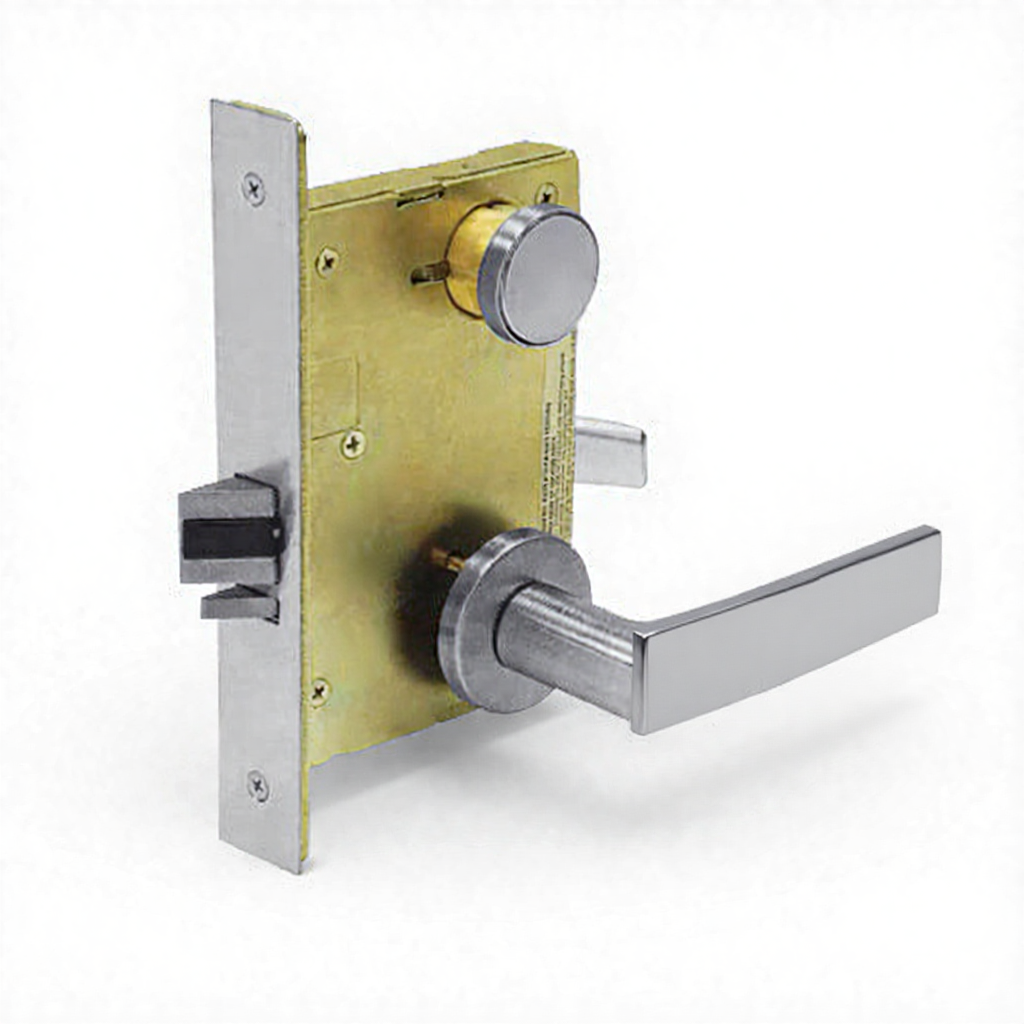

The Sargent LCV04-8237-LNP-26D is a 8200 Series Classroom mortise lock in Satin Chrome (US26D/626). Outside lever locked until unlocked by key, relocks automatically when door closes. Inside always free.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: LCV04-8237-LNP-26D | |
| LCV04 | Series/model code |
| 8237 | Configuration: 8237 |
| LNP | Configuration: LNP |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: Sargent mortise locks are the go-to spec for architects on institutional projects. The build quality justifies the price — these locks outlast the buildings they're installed in.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | LCV04-8237-LNP-26D |
| Function | Classroom |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Classroom function — Outside lever locked until unlocked by key, relocks automatically when door clos
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Prepped for interchangeable core (IC). Order IC housing and core separately.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
