Product Description
LD9847L-KC-18 4 313 RHR Von Duprin 98 Series Key Capture Concealed Vertical Rod Exit Device in Duranodic Dark Bronze
The LD9847L-KC-18 4 313 RHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-18 Lever trim in Duranodic Dark Bronze (313/313), sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9847/9848) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | LD9847L-KC-18 4 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Key Capture |
| Lever Design | L-18 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-18 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

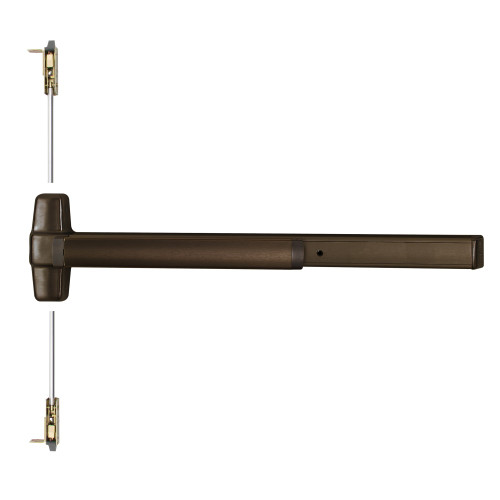

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
