Product Description
LD9875L-NL-05 3 26D RHR Von Duprin 98 Series Night Latch Mortise Lock Exit Device in Satin Chrome
| Part Number Breakdown: LD9875L-NL-05 3 26D RHR | |
|---|---|
| 9875 | 9875 Series Mortise Lock Exit Device |
| LD | Latch Detector |
| L | Lever Night Latch |
| 05 | 05 Lever Design |
| 26D | Satin Chrome (BHMA 626) |
| 3 | 3 Foot Door |
| RHR | Right Hand Reverse |
The LD9875L-NL-05 3 26D RHR is a Von Duprin 9875 Series Mortise Lock exit device with Latch Detector (LD) and Lever trim in Satin Chrome, sized for 3 Foot doors. Lever Trim — Night Latch function. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Lever Night Latch with Latch Detector gives you ADA-compliant lever operation plus door status monitoring. The panel sees latch status in real time — critical for lockdown and emergency scenarios where you need to verify every door in the building is secured.
| Specifications | |
|---|---|
| Part Number | LD9875L-NL-05 3 26D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Night Latch |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Chrome (26D/626) |
| Door Size | 3 Foot |
| Handing | Right Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Mortise Lock (mortise body recessed into door edge)
- Satin Chrome finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD9875 is the 9875 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 9875 — with the addition of latch bolt position monitoring for access control integration.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

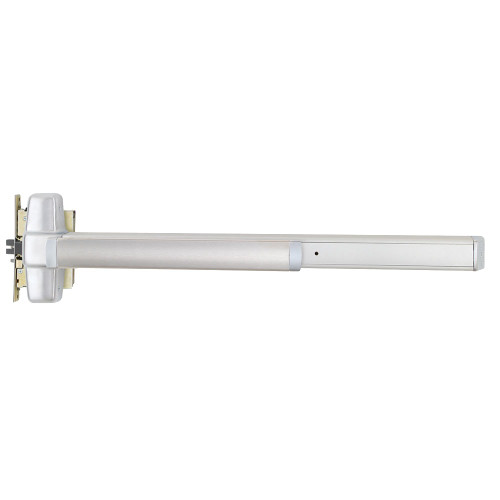

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
