Product Description

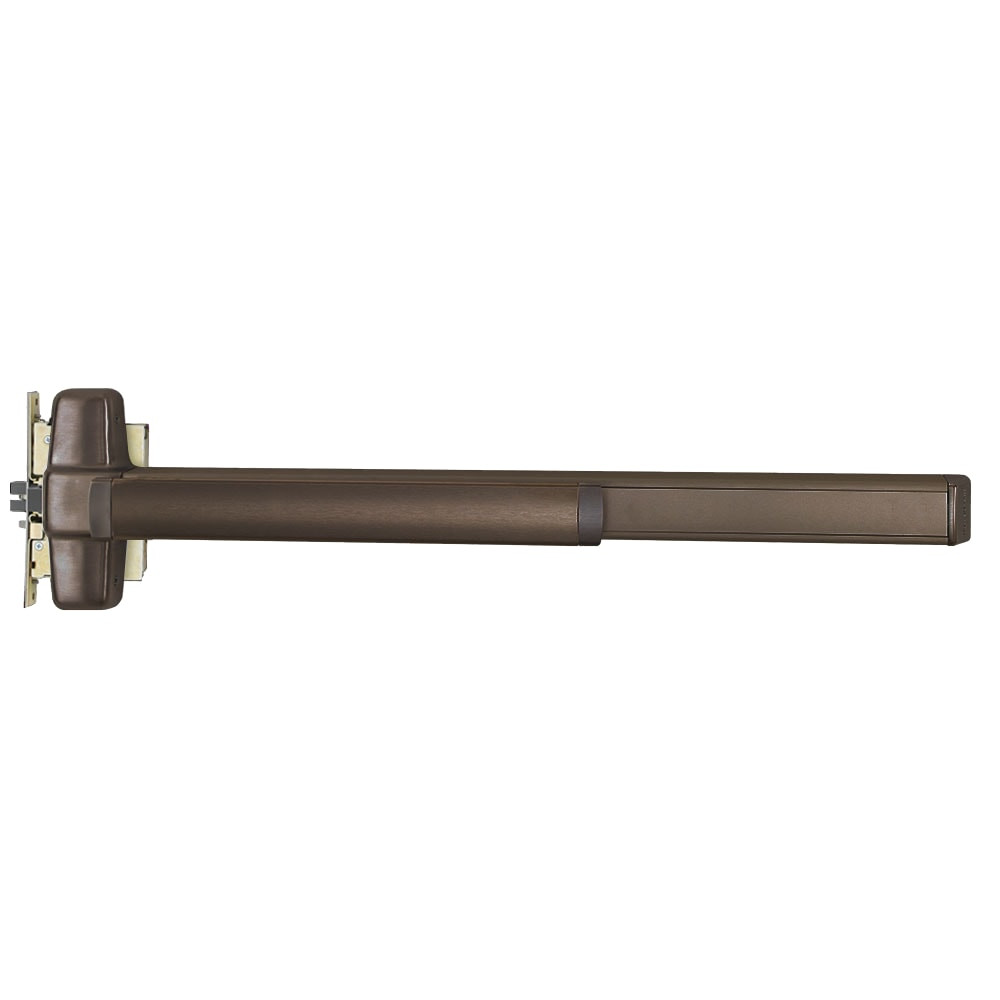

LD9875L-NL-07 3 313 RHR Von Duprin 98 Series Night Latch Mortise Lock Exit Device in Duranodic Dark Bronze
| Part Number Breakdown: LD9875L-NL-07 3 313 RHR | |
|---|---|
| 9875 | 9875 Series Mortise Lock Exit Device |
| LD | Latch Detector |
| L | Lever Night Latch |
| 07 | 07 Lever Design |
| 313 | Duranodic Dark Bronze (BHMA 313) |
| 3 | 3 Foot Door |
| RHR | Right Hand Reverse |
The LD9875L-NL-07 3 313 RHR is a Von Duprin 9875 Series Mortise Lock exit device with Latch Detector (LD) and Lever trim in Duranodic Dark Bronze, sized for 3 Foot doors. Lever Trim — Night Latch function. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Lever Night Latch with Latch Detector gives you ADA-compliant lever operation plus door status monitoring. The panel sees latch status in real time — critical for lockdown and emergency scenarios where you need to verify every door in the building is secured.
| Specifications | |
|---|---|
| Part Number | LD9875L-NL-07 3 313 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Night Latch |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Duranodic Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Handing | Right Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Mortise Lock (mortise body recessed into door edge)
- Duranodic Dark Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD9875 is the 9875 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 9875 — with the addition of latch bolt position monitoring for access control integration.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
