Product Description
LD9875L-US4-3-LHR Von Duprin with 996L-M Lever Left Handed Mortise Lock Exit Device Less Dogging in Satin Brass
| Part Number Breakdown: LD9875L-US4-3-LHR | |
|---|---|
| 9875 | 9875 Series Mortise Lock Exit Device |
| LD | Latch Detector |
| L | Lever Trim |
| US4 | Satin Brass (BHMA 606) |
| 3 | 3 Foot Door |
| LHR | Left Hand Reverse |
The LD9875L-US4-3-LHR is a Von Duprin 9875 Series Mortise Lock exit device with Latch Detector (LD) and Lever trim in Satin Brass, sized for 3 Foot doors. Lever Trim — Night Latch function. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Latch Detector on a lever trim exit device is the most common setup for access-controlled corridors — the panel knows the door is latched, and you get full key override on the outside. Make sure the LD wiring runs back to a supervised input on your access panel for proper door status reporting.
| Specifications | |
|---|---|
| Part Number | LD9875L-US4-3-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Brass (US4/606) |
| Door Size | 3 Foot |
| Handing | Left Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9875 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Mortise Lock (mortise body recessed into door edge)
- Satin Brass finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD9875 is the 9875 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 9875 — with the addition of latch bolt position monitoring for access control integration.

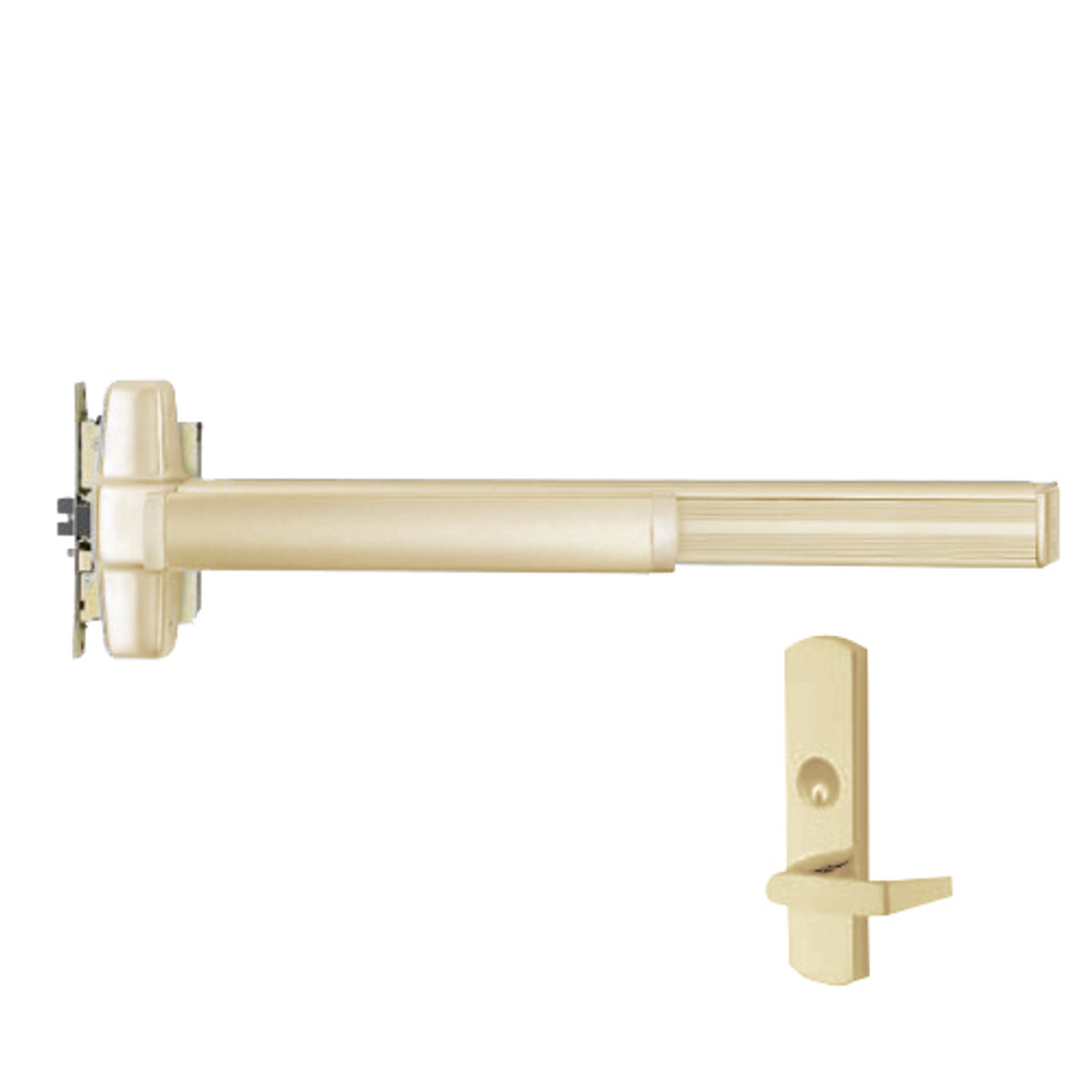

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
