Product Description

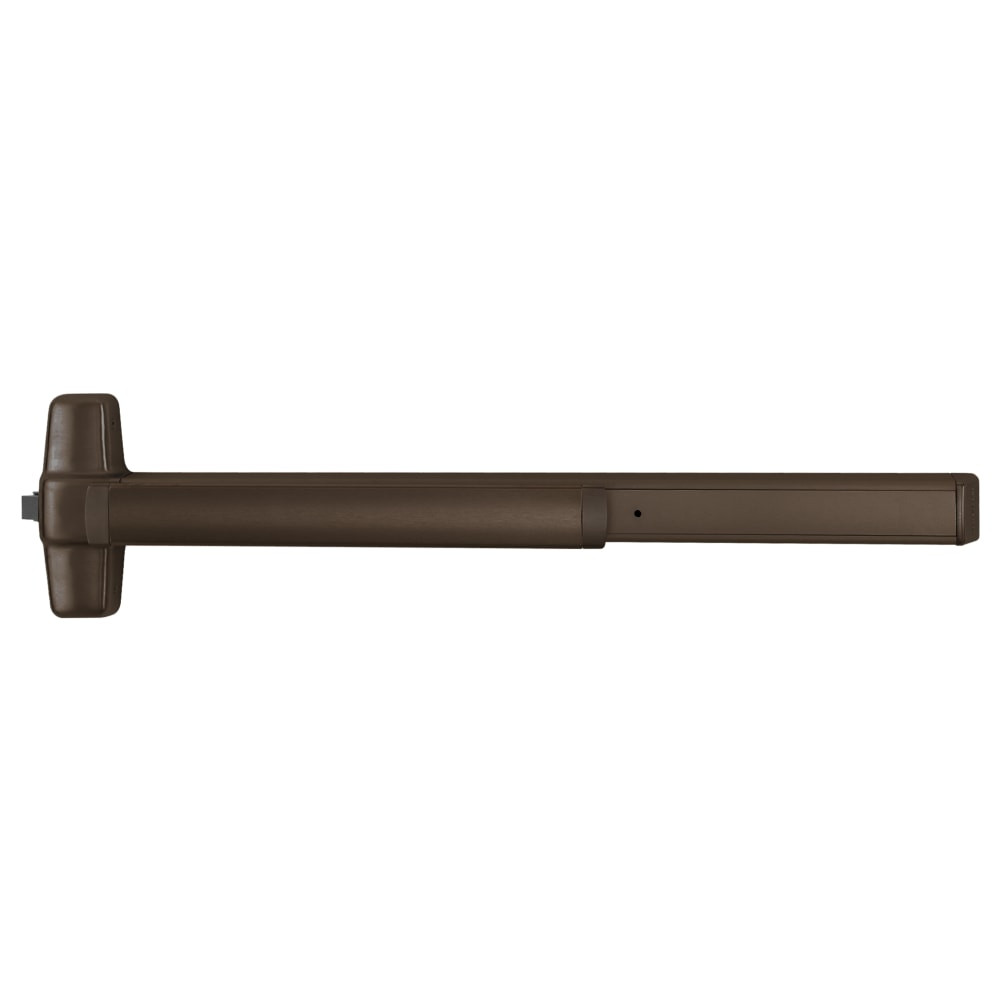

LD98L-06 4 313 LHR Von Duprin 98 Series Classroom Rim Exit Device in Duranodic Dark Bronze
| Part Number Breakdown: LD98L-06 4 313 LHR | |
|---|---|
| 98 | 98 Series Rim Exit Device |
| LD | Latch Detector |
| L | Lever Trim |
| 06 | 06 Lever Design |
| 313 | Duranodic Dark Bronze (BHMA 313) |
| 4 | 4 Foot Door |
| LHR | Left Hand Reverse |
The LD98L-06 4 313 LHR is a Von Duprin 98 Series Rim exit device with Latch Detector (LD) and Lever trim in Duranodic Dark Bronze, sized for 4 Foot doors. Lever Trim — Night Latch function. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Latch Detector on a lever trim exit device is the most common setup for access-controlled corridors — the panel knows the door is latched, and you get full key override on the outside. Make sure the LD wiring runs back to a supervised input on your access panel for proper door status reporting.
| Specifications | |
|---|---|
| Part Number | LD98L-06 4 313 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Night Latch |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Duranodic Dark Bronze (313/313) |
| Door Size | 4 Foot |
| Handing | Left Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Duranodic Dark Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD98 is the 98 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 98 — with the addition of latch bolt position monitoring for access control integration.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
