Product Description
LD98L-BE-17 4 315 RHR Von Duprin 98 Series Passage Rim Exit Device in Black
| Part Number Breakdown: LD98L-BE-17 4 315 RHR | |
|---|---|
| 98 | 98 Series Rim Exit Device |
| LD | Latch Detector |
| L | Lever with Blank Escutcheon |
| BE | Blank Escutcheon (smooth plate, no cylinder opening) |
| 17 | 17 Lever Design |
| 315 | Dark Bronze Painted (BHMA 315) |
| 4 | 4 Foot Door |
| RHR | Right Hand Reverse |
The LD98L-BE-17 4 315 RHR is a Von Duprin 98 Series Rim exit device with Latch Detector (LD) and Lever Blank Escutcheon trim in Dark Bronze Painted, sized for 4 Foot doors. Lever Trim with Blank Escutcheon — smooth plate on the outside trim with no cylinder opening. Outside lever locked/unlocked by key, always free from inside. Ships less cylinder — order a mortise cylinder separately.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Blank Escutcheon on the lever trim gives you a clean, flat plate on the outside — no cylinder hole visible. The Latch Detector still monitors latch position and reports to your access control panel. This is the spec when you want door monitoring but don't need a visible cylinder on the escutcheon plate.
| Specifications | |
|---|---|
| Part Number | LD98L-BE-17 4 315 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Night Latch |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Dark Bronze Painted (315/315) |
| Door Size | 4 Foot |
| Handing | Right Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Dark Bronze Painted finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD98 is the 98 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 98 — with the addition of latch bolt position monitoring for access control integration.

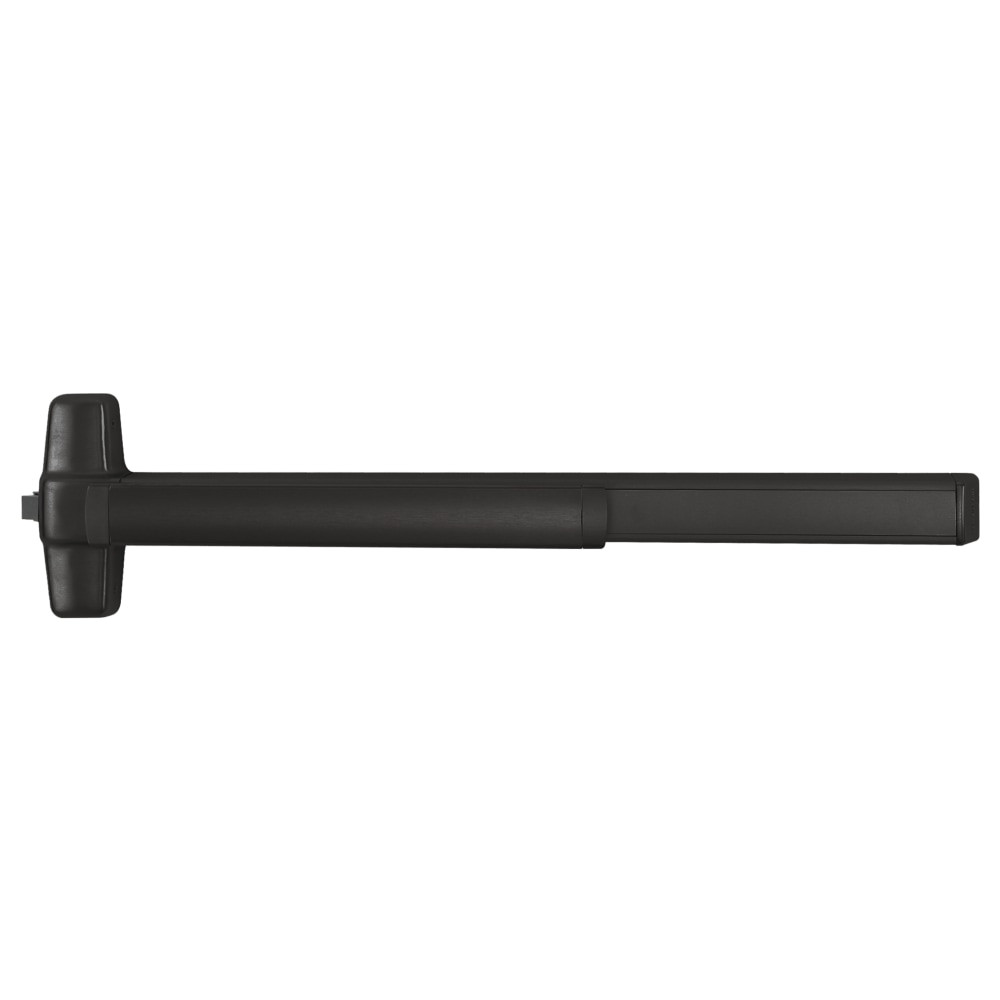

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
