Product Description

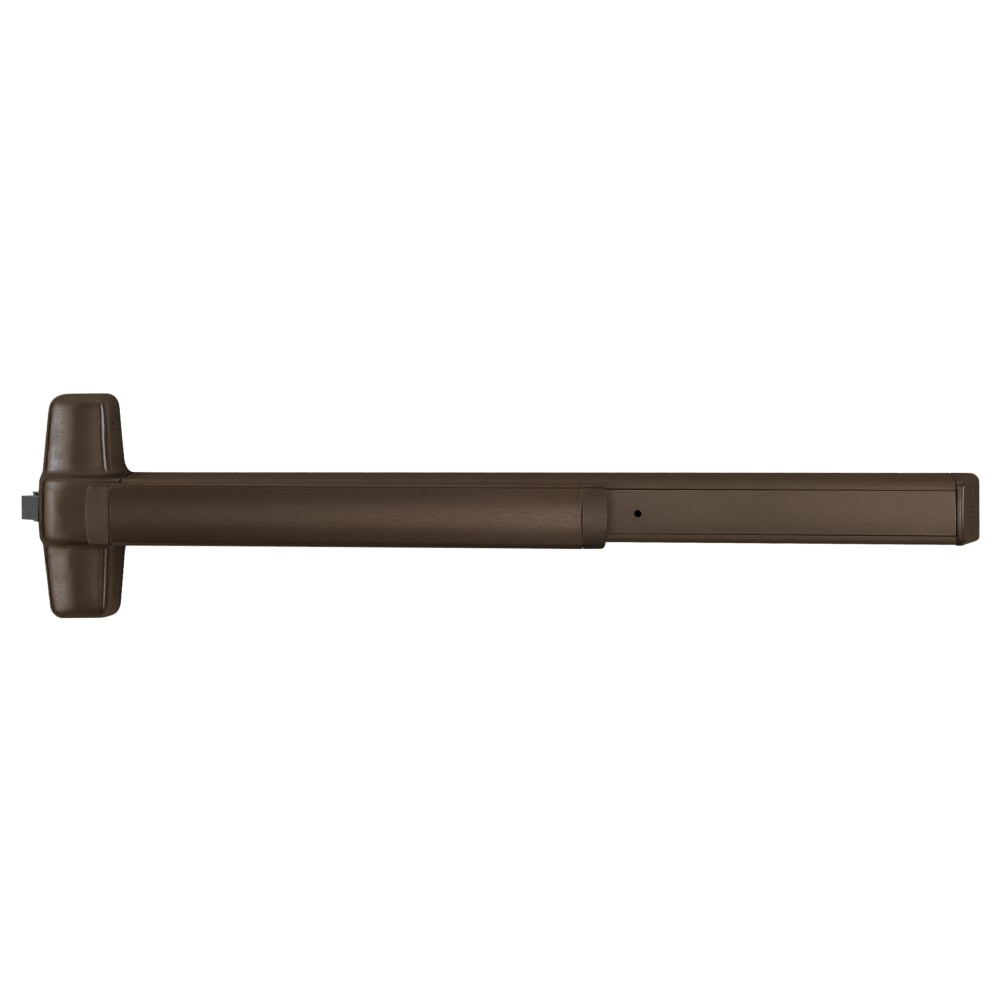

LD98L-KC-02 4 643E LHR Von Duprin 98 Series Key Capture Rim Exit Device in Aged Bronze
| Part Number Breakdown: LD98L-KC-02 4 643E LHR | |
|---|---|
| 98 | 98 Series Rim Exit Device |
| LD | Latch Detector |
| L | L-KC |
| 02 | 02 Lever Design |
| 643E | 643E |
| 4 | 4 Foot Door |
| LHR | Left Hand Reverse |
The LD98L-KC-02 4 643E LHR is a Von Duprin 98 Series Rim exit device with Latch Detector (LD) and Lever Key Capture trim in 643E, sized for 4 Foot doors. Lever Trim with Key Capture — key cannot be removed when lock is unlocked, preventing unauthorized key duplication. Ships less cylinder — order a mortise cylinder separately.
Latch Detector — monitors the latch bolt position and reports status to the access control panel. 24VDC. ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Key Capture trim means the key stays in the lock when unlocked — can't be removed until you relock. Combined with Latch Detector, you get door status monitoring plus key control. Popular in government and high-security facilities.
| Specifications | |
|---|---|
| Part Number | LD98L-KC-02 4 643E LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Electronics | LD — Latch Detector (24VDC) |
| Function | Key Capture |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | 643E |
| Door Size | 4 Foot |
| Handing | Left Hand Reverse |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 98 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Latch Detector (LD) — monitors latch bolt position, reports to access control panel, 24VDC
- Rim (horizontal latch bolt — strikes into frame on lock side)
- 643E finish
- Hex key dogging standard — hold latch retracted during business hours
- Ships less cylinder — order separately to match your keyway
Cross-Reference: The LD98 is the 98 Series with factory-installed Latch Detector switch. Same mounting prep, same strike, same trim compatibility as the standard 98 — with the addition of latch bolt position monitoring for access control integration.

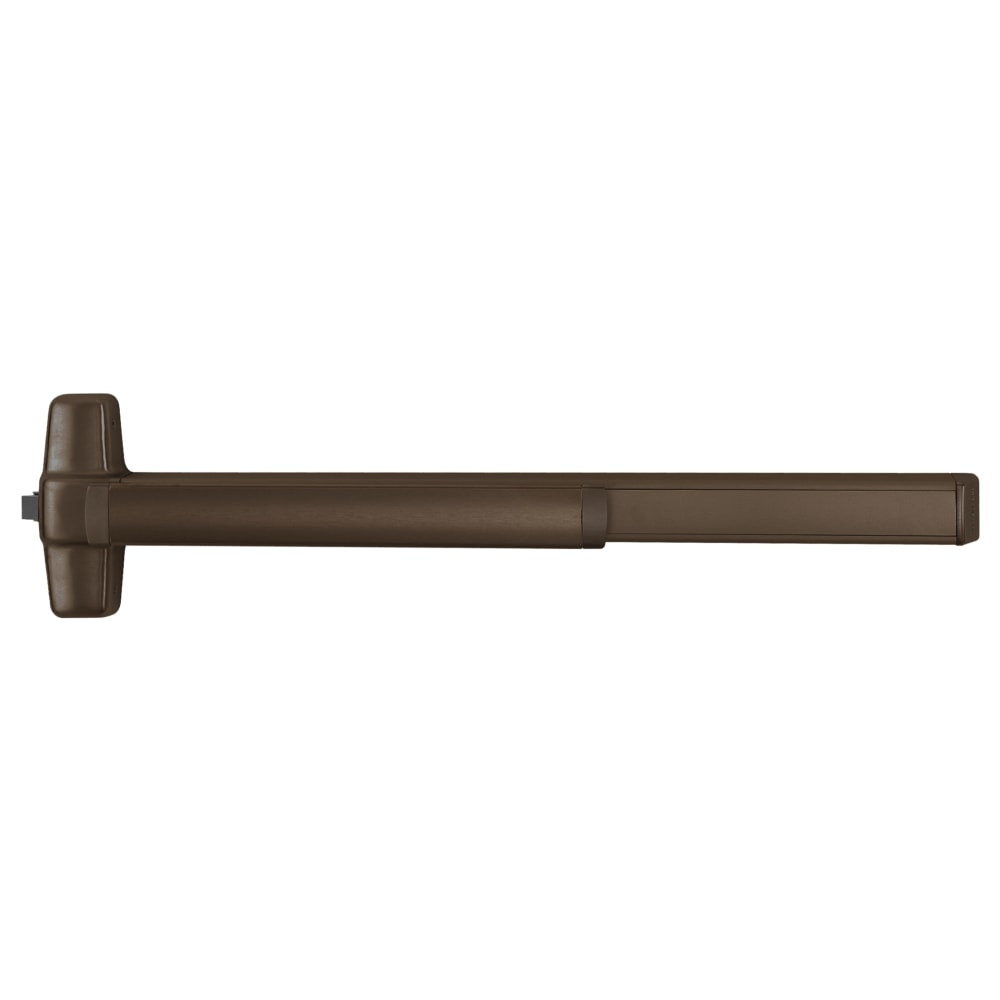

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
