Product Description

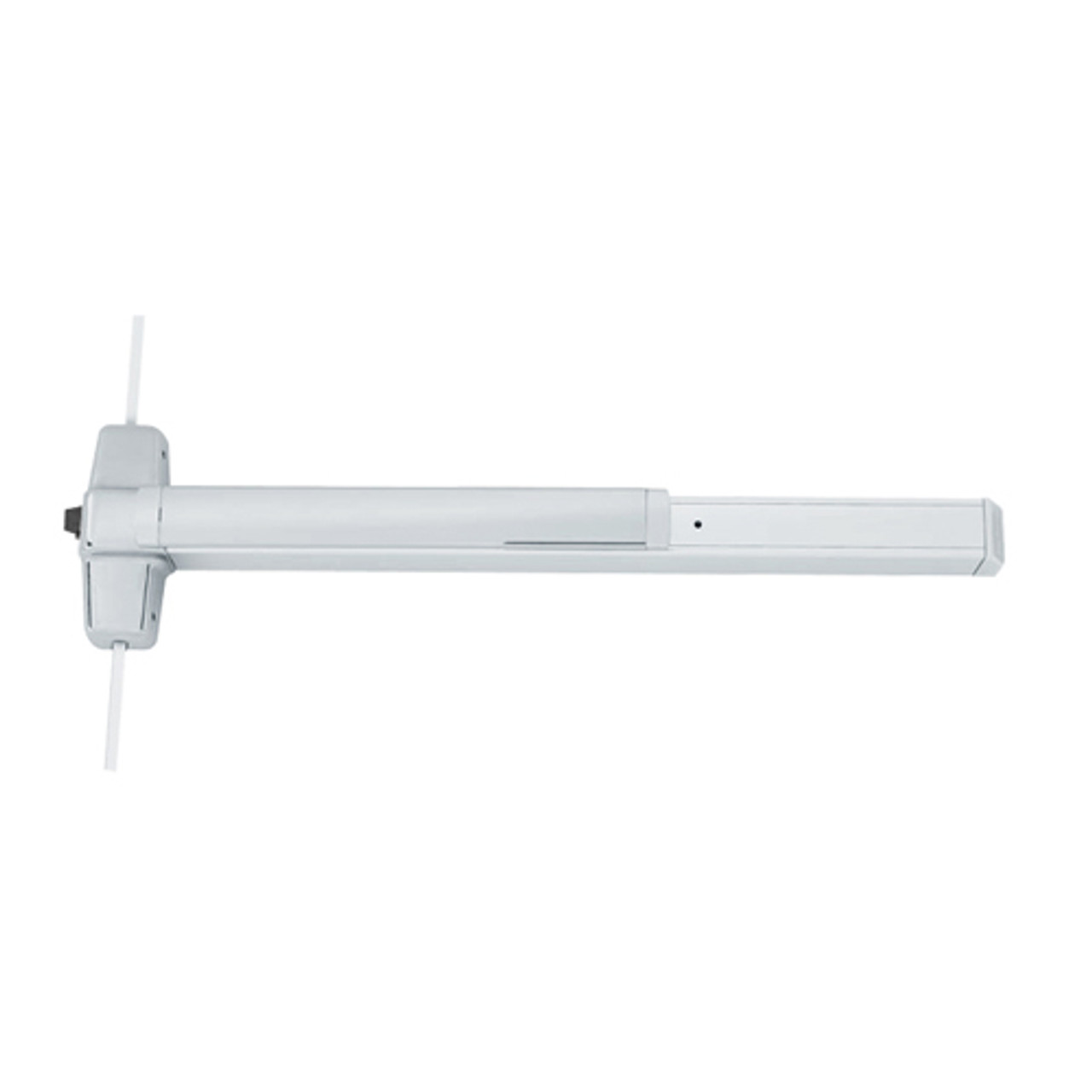

LD9957EO-US28-4 Von Duprin 9957 Series Exit Only Surface Three Point Latch Device with Less Dogging in Anodized Aluminum
The LD9957EO-US28-4 is a Von Duprin 9957 Series Surface Three Point Latch exit device in Aluminum (US28/628), sized for 4' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Three-point latch devices like the 9957 give you the security of a multipoint lock on an exit device. The rim latch handles the primary latching while top and bottom bolts prevent door warping and forced entry. If the customer needs SCIF-level security on an exit door, this is what you spec.
| Specifications | |
|---|---|
| Part Number | LD9957EO-US28-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9957 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Aluminum (US28/628) |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9957 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- Aluminum finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
