Product Description
LD9975K-US10-4 Von Duprin 9975 Series with 996K Knob Trim Mortise Lock Exit Device with Less Dogging in Satin Bronze
The LD9975K-US10-4 is a Von Duprin 9975 Series Mortise Lock exit device in Satin Bronze (US10/612), sized for 4' doors. Knob Trim — outside knob for keyed entry. Night latch function. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9975 is the most complex exit device in the Von Duprin lineup. It has the most moving parts and requires the most precise door prep. When quoting 9975 jobs, add time for mortise pocket verification and potential adjustment. Get it right and it's bulletproof — rush it and you'll be back.
| Specifications | |
|---|---|
| Part Number | LD9975K-US10-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9975 |
| Function | Knob Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Bronze (US10/612) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 9975 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Satin Bronze finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
- Hex key dogging standard — hold latch retracted during business hours

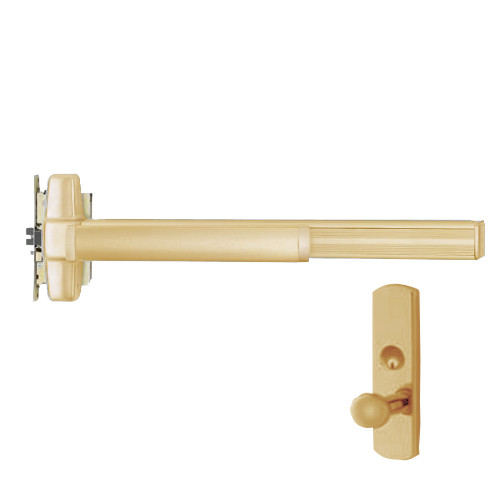

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
