Product Description

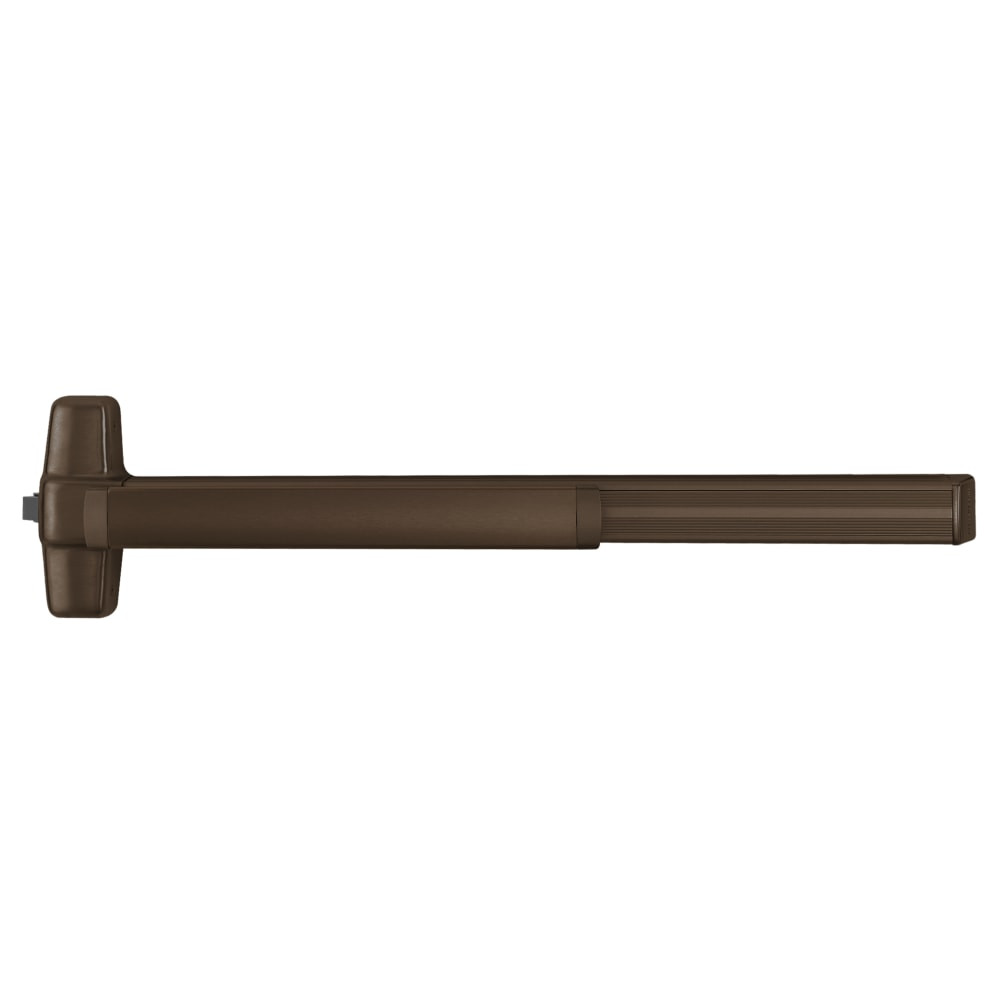

LD99L-KC-17 4 643E LHR Von Duprin 99 Series Key Capture Rim Exit Device in Aged Bronze
The LD99L-KC-17 4 643E LHR is a Von Duprin 99 Series Rim exit device with L-17 Lever trim in Aged Bronze, sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 99 series rim exit device is your fastest retrofit option. It mounts entirely on the inside surface of the door with no door prep required. On apartment buildings and rental properties where you can't modify the door, specify a rim device.
| Specifications | |
|---|---|
| Part Number | LD99L-KC-17 4 643E LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Key Capture |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Aged Bronze |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Latch Detector |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-17 Lever trim — pull operation from outside
- Aged Bronze finish
- Latch Detector — Latch Detector monitors door position — reports latch bolt status to the access control panel
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
