Product Description

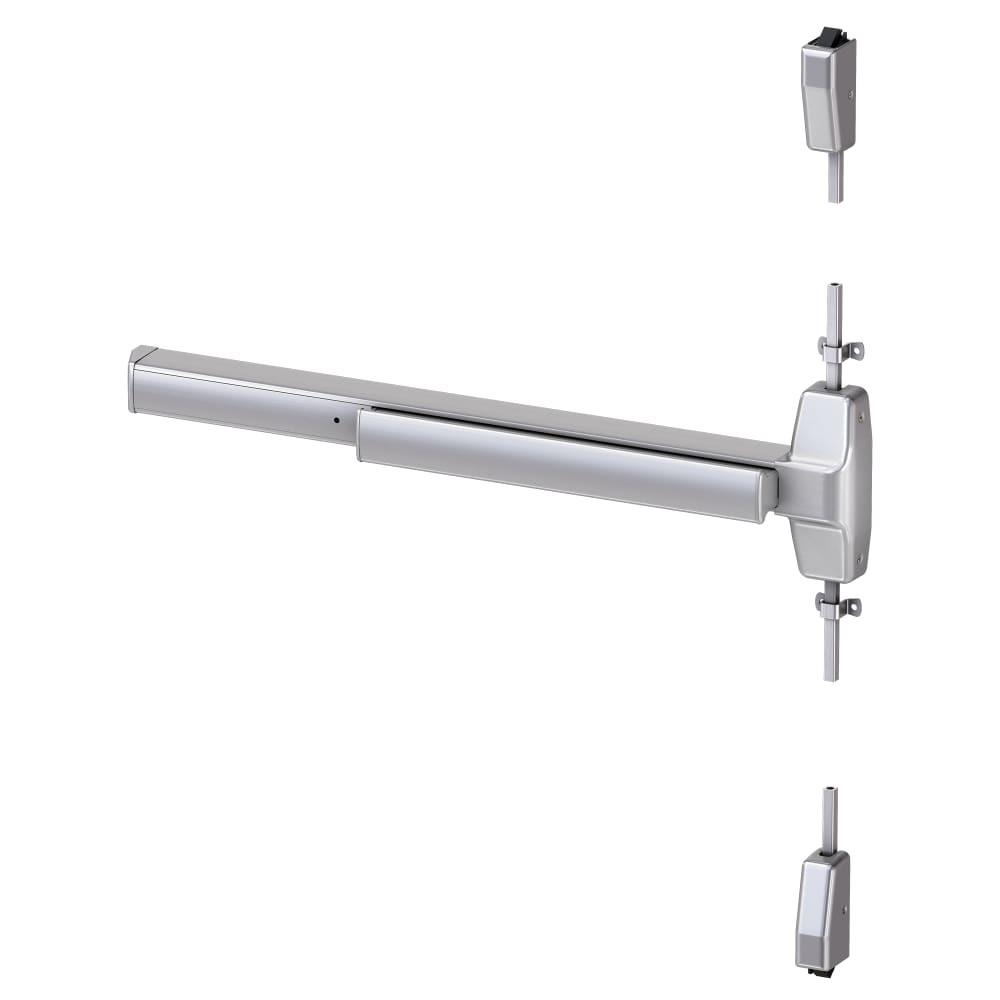

LX7827EO-US26D-4 Von Duprin 78 Series Exit Only Surface Vertical Rod Exit Device in Satin Chrome
The Von Duprin LX7827EO-US26D-4 is a surface vertical rod exit device that latches at the header and threshold for pairs of storefront doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
The 7827 uses surface-mounted rods for top-and-bottom latching. Standard choice for pairs of doors where both leaves need to be active. Available in 4-foot width. Rods are visible on the door face. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: When pairing 7827 devices on double doors, make sure you have a coordinator if both doors are fire-rated. The inactive leaf needs to close first so the astragal seats properly. The coordinator is NOT included with the device.
| Specifications | |
|---|---|
| Part Number | LX7827EO-US26D-4 |
| Function | EO - Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Not Included — order separately |
| Warranty | 5-Year Mechanical |
- Surface vertical rod latching — secures at header and threshold
- Standard choice for pairs of active doors
- Hex key dogging standard — holds latch retracted during business hours
- Satin Chrome (US26D/626) finish
Works With: For single doors, see the 78 Series Rim. For concealed rods, see the 7847 CVR. Order coordinator separately for pairs of fire-rated doors.
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
