Product Description
LX98EO 3 US28 Von Duprin Electric Latch (LX) 98 Series Exit Only Rim Exit Device Satin Aluminum
The LX98EO 3 US28 is a Von Duprin 98 Series rim exit device in Satin Aluminum (US28/628), sized for 3' doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
Electric Latch Retraction — Electric Latch Retraction with latch bolt monitoring for access control integration. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | LX98EO 3 US28 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Aluminum finish
- Electric Latch Retraction — Electric Latch Retraction with latch bolt monitoring for access control integration
- Hex key dogging standard — hold latch retracted during business hours
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

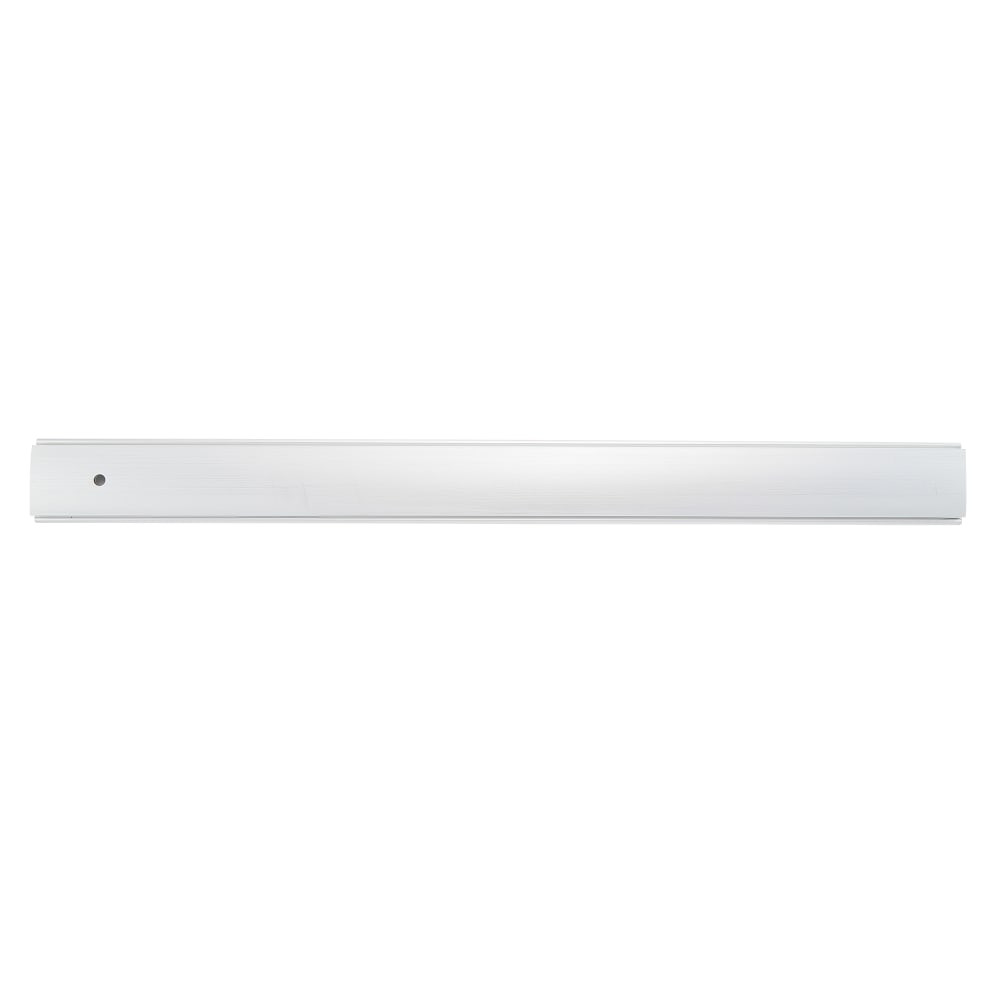

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
