Product Description
LXQEL9927L-17-F 3 26D LBR RR Von Duprin 99 Series Classroom Fire Rated Surface Vertical Rod Exit Device in Satin Chrome
The LXQEL9927L-17-F 3 26D LBR RR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-17 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Electric Latch Retraction — Electric Latch Retraction with latch bolt monitoring for access control integration. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Surface vertical rod devices (9927) have rods visible on the door surface running to top and bottom bolts. When measuring for replacement, check rod length — 3' and 4' doors need different rod kits. Also verify header and threshold strike condition before quoting.
| Specifications | |
|---|---|
| Part Number | LXQEL9927L-17-F 3 26D LBR RR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Classroom |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Satin Chrome (US26D/626) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Electric Latch Retraction |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-17 Lever trim — pull operation from outside
- Satin Chrome finish
- Electric Latch Retraction — Electric Latch Retraction with latch bolt monitoring for access control integration
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

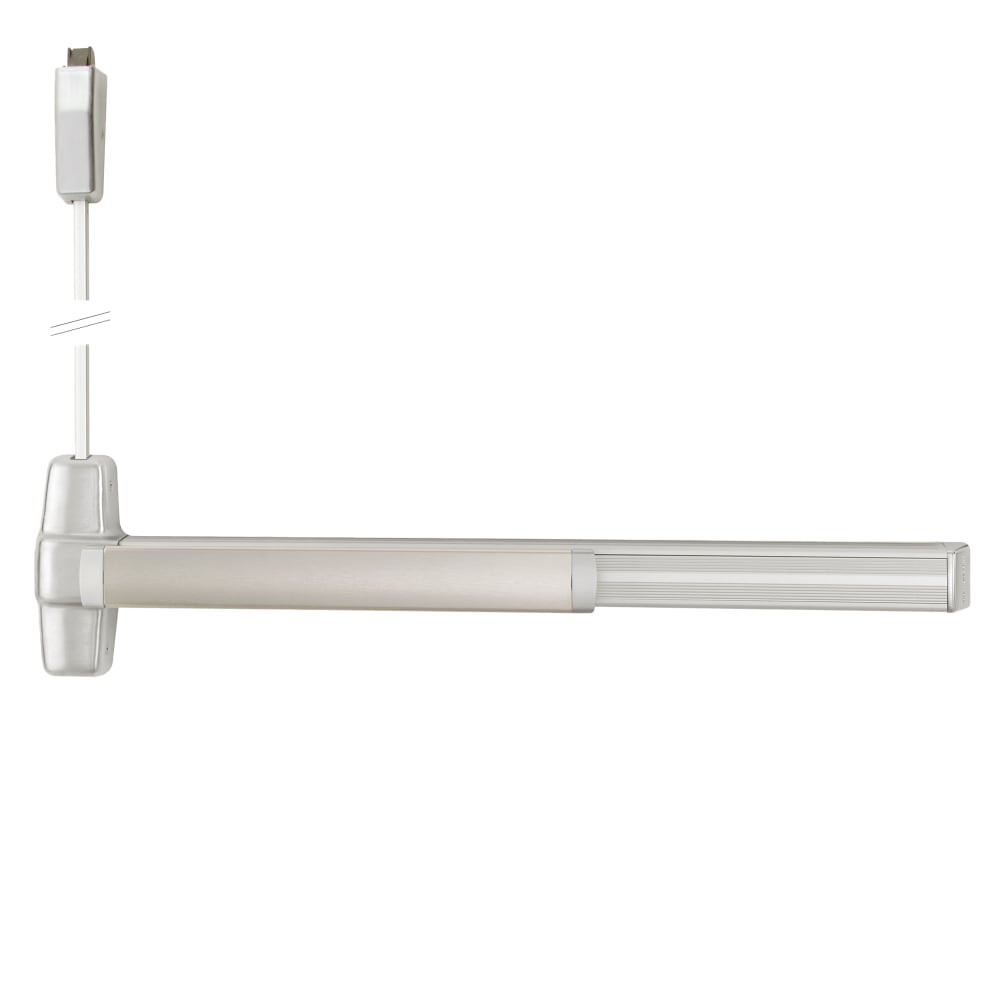

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
