Product Description
Concealed vertical rod devices hide the rods inside the door for a cleaner appearance. The trade-off for better aesthetics? The door must be prepped for internal rod routing, and field service requires removing the push bar.

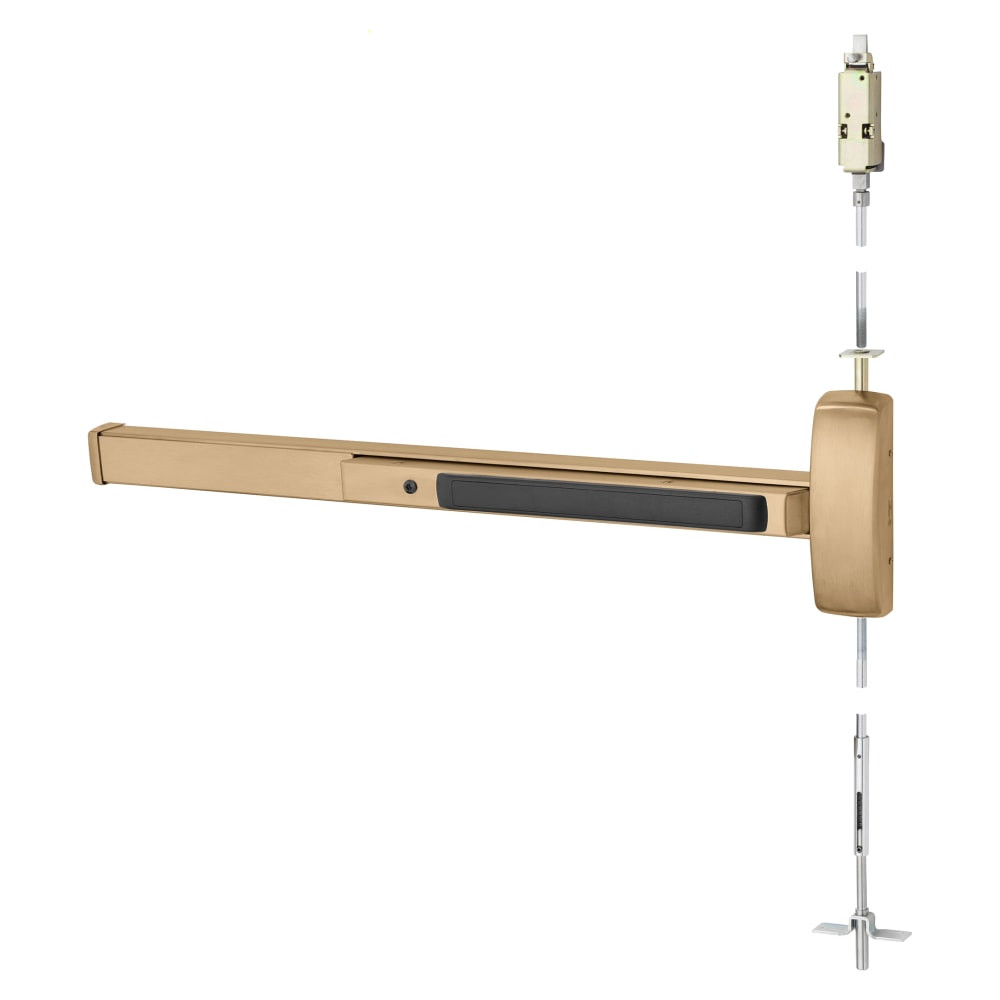

The Sargent MD8610F-LHR-10 is a Grade 1 concealed vertical rod exit device from the 80 Series for 36" openings with Exit Only function.
This device is Left Hand Reverse. Exit devices are HANDED and cannot be reversed in the field. Stand outside the door facing it: hinges on the left = Left Hand, hinges on the right = Right Hand. If the door swings toward you, add "Reverse." Verify your handing before ordering.
Pro-Tip from Our Locksmiths: When specifying exit devices for double doors without a mullion, each leaf gets its own device. The active leaf (with the lock) gets the full device with trim. The inactive leaf gets a dummy push bar or flush bolt setup depending on the spec.
| Handing | Left Hand Reverse |
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod
Ships Same Day — Order before 2PM EST and your Sargent hardware ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Questions? Call (877) 365-5625 or contact us online.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Concealed Vertical Rod
Function Exit Only
Series 80
Finish Satin Bronze
Mount Type Concealed Vertical Rod
