Product Description

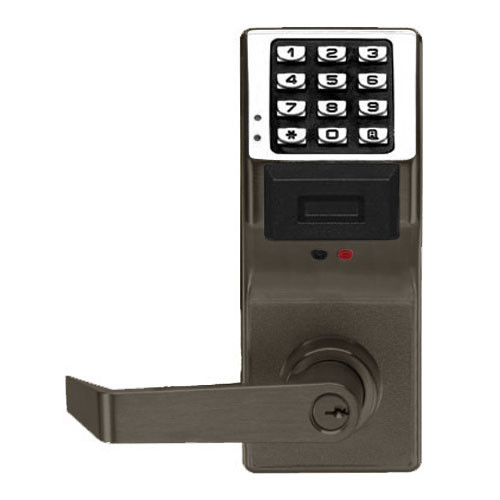

PDL3000IC-R-US10B Alarm Lock Trilogy Series PIN/Prox Digital Cylindrical Keyless Lock Straight Leverset with Sargent Core Override in Duronodic
| Part Number Breakdown: PDL3000IC-R-US10B | |
|---|---|
| P | Proximity Card/Fob + PIN Keypad |
| DL | Digital Lock |
| 3000 | Mortise Lock |
| IC | Interchangeable Core — Sargent LFIC |
| US10B | Oil Rubbed Bronze (US10B/613) |
The Trilogy PDL3000 is a PIN/Prox Mortise Lock in Oil Rubbed Bronze. PIN + Proximity access — enter a PIN OR present a prox card/fob to unlock. Dual-credential without a full access control system.
Prepped for Sargent LFIC interchangeable core — key override with your existing keyway. Core and keys ordered separately.
Pro-Tip from Our Locksmiths: Trilogy locks are standalone — no wiring, no panel, no network. Battery powered, internal audit trails. Program at the door with the programming code.
| Specifications | |
|---|---|
| Part Number | PDL3000IC-R-US10B |
| Brand | Alarm Lock (Napco) |
| Series | Trilogy PDL3000 |
| Type | PIN/Prox Mortise Lock |
| Access Method | PIN + Proximity |
| Mount Type | Mortise |
| IC Prep | Sargent LFIC |
| Finish | Oil Rubbed Bronze |
| Power | AA Batteries |
| Users | 100-2000 |
| Audit Trail | Up to 40,000 events |
- PIN + Proximity — standalone, no wiring needed
- Mortise mount
- Battery powered, built-in audit trail
Cross-Reference: PIN-only (DL) available. Networx 6000-series for wireless.
Ships Same Day — Order before 3PM EST. Full warranty. Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
