Product Description
QEL-98L-US32D-3-LHR Von Duprin 98 Series with 996L Lever Left Handed Rim Exit Device with Quiet Electric Latch in Satin Stainless
The QEL-98L-US32D-3-LHR is a Von Duprin 98 Series rim exit device in Satin Stainless (US32D/630), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | QEL-98L-US32D-3-LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Stainless (US32D/630) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Satin Stainless finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
- Hex key dogging standard — hold latch retracted during business hours

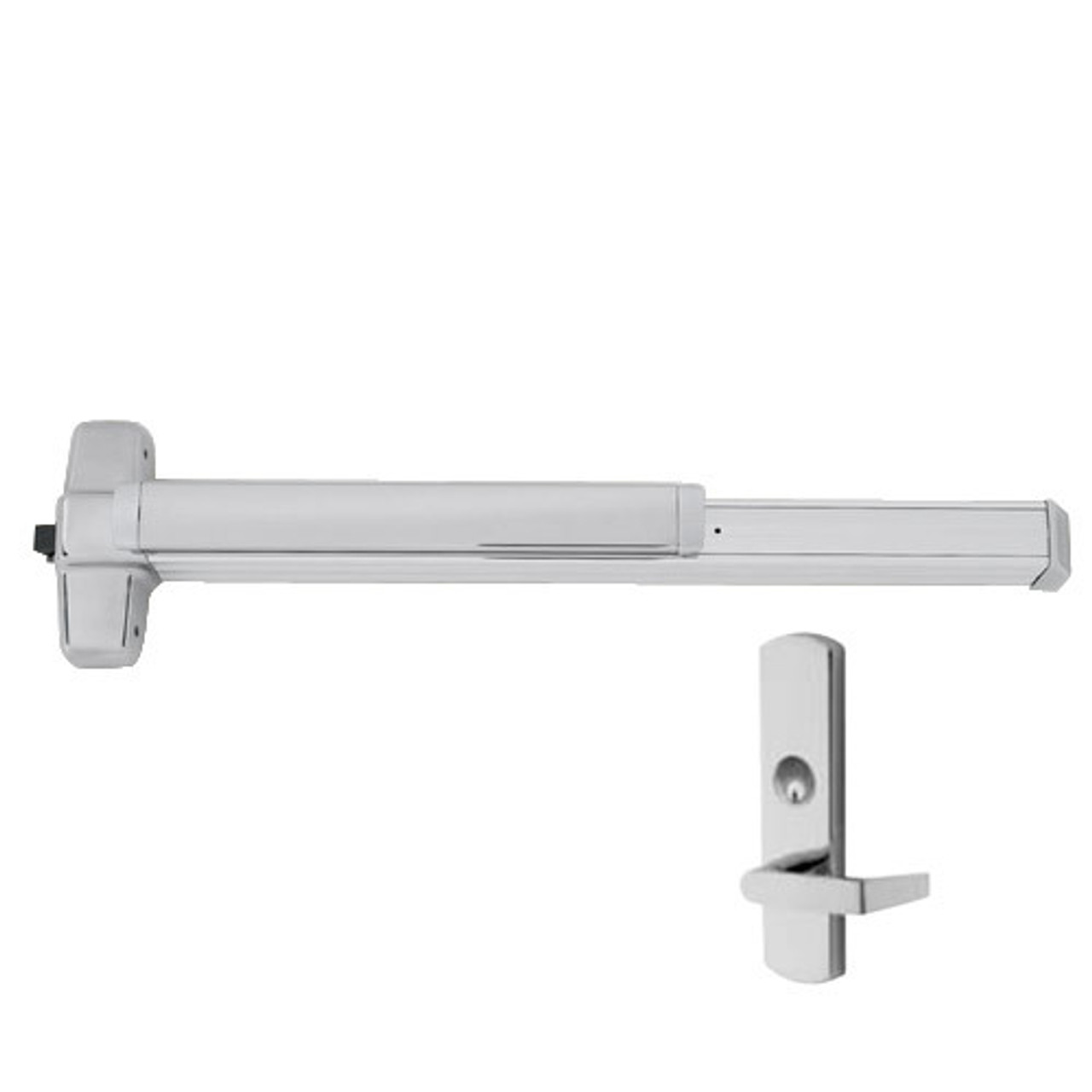

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
