Product Description
QEL9857L-BE-06 3 US26 RHR Von Duprin 98 Series Passage Surface Three Point Latch Exit Device in Polished Chrome
The QEL9857L-BE-06 3 US26 RHR is a Von Duprin 9857 Series Surface Three Point Latch exit device with L-06 Lever trim in Polished Chrome, sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 9857 three-point latch device provides three engagement points — rim latch plus top and bottom bolts. This is your go-to for high-security applications or large doors where a single latch point isn't enough to keep the door sealed. Popular on data centers and clean rooms.
| Specifications | |
|---|---|
| Part Number | QEL9857L-BE-06 3 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9857 |
| Function | Classroom |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Three Point Latch (three latch points for enhanced security) |
| Finish | Polished Chrome |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9857 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Three Point Latch (three latch points for enhanced security)
- L-06 Lever trim — pull operation from outside
- Polished Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

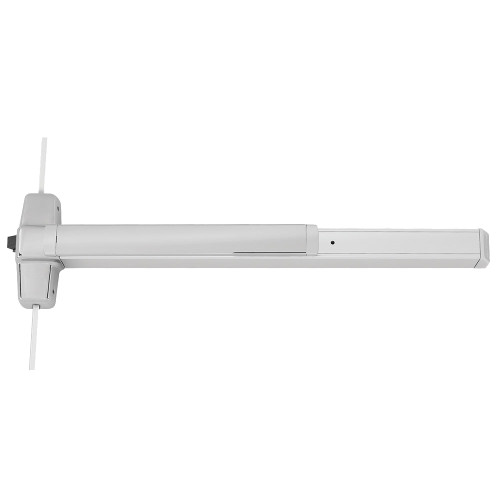

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
