Product Description
QEL9875K-US26D-4 Von Duprin 9875 Series with 996K-M Knob Mortise Lock Exit Device with Quite Electric Latch in Satin Chrome
The QEL9875K-US26D-4 is a Von Duprin 9875 Series Mortise Lock exit device in Satin Chrome (US26D/626), sized for 4' doors. Knob Trim — outside knob for keyed entry. Night latch function. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9875 is the most complex exit device in the Von Duprin lineup. It has the most moving parts and requires the most precise door prep. When quoting 9875 jobs, add time for mortise pocket verification and potential adjustment. Get it right and it's bulletproof — rush it and you'll be back.
| Specifications | |
|---|---|
| Part Number | QEL9875K-US26D-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Knob Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Chrome (US26D/626) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Satin Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
- Hex key dogging standard — hold latch retracted during business hours

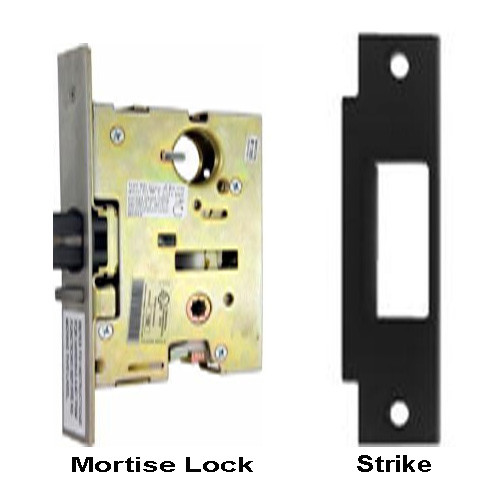

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
