Product Description

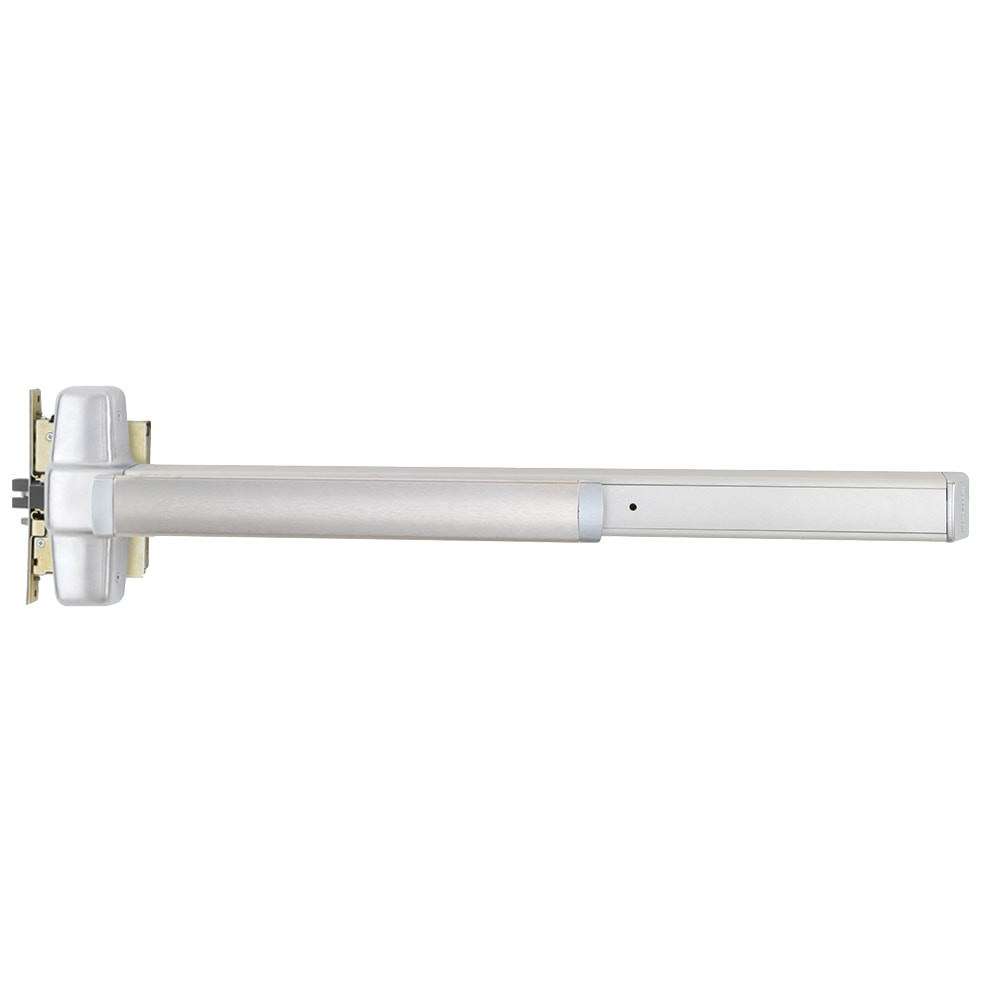

QEL9875L-17 3 26D RHR Von Duprin 98 Series Classroom Mortise Lock Exit Device in Satin Chrome
The QEL9875L-17 3 26D RHR is a Von Duprin 9875 Series Mortise Lock exit device with L-17 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Mortise lock exit devices (9875) require a mortise pocket prepped into the door edge. On retrofit jobs, verify the existing mortise prep is compatible with Von Duprin's 9875 body dimensions. A Schlage L-series prep is close but not identical — don't assume cross-compatibility.
| Specifications | |
|---|---|
| Part Number | QEL9875L-17 3 26D RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Classroom |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Satin Chrome (US26D/626) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- L-17 Lever trim — pull operation from outside
- Satin Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
