Product Description
QEL98L-06-F 4 US28 RHR Von Duprin Fire Rated Quiet Electric Latch (QEL) 98 Series Lever Rim Exit Device Satin Aluminum
The QEL98L-06-F 4 US28 RHR is a Von Duprin 98 Series rim exit device with L-06 Lever trim in Satin Aluminum (US28/628), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | QEL98L-06-F 4 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Classroom |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-06 Lever trim — pull operation from outside
- Satin Aluminum finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

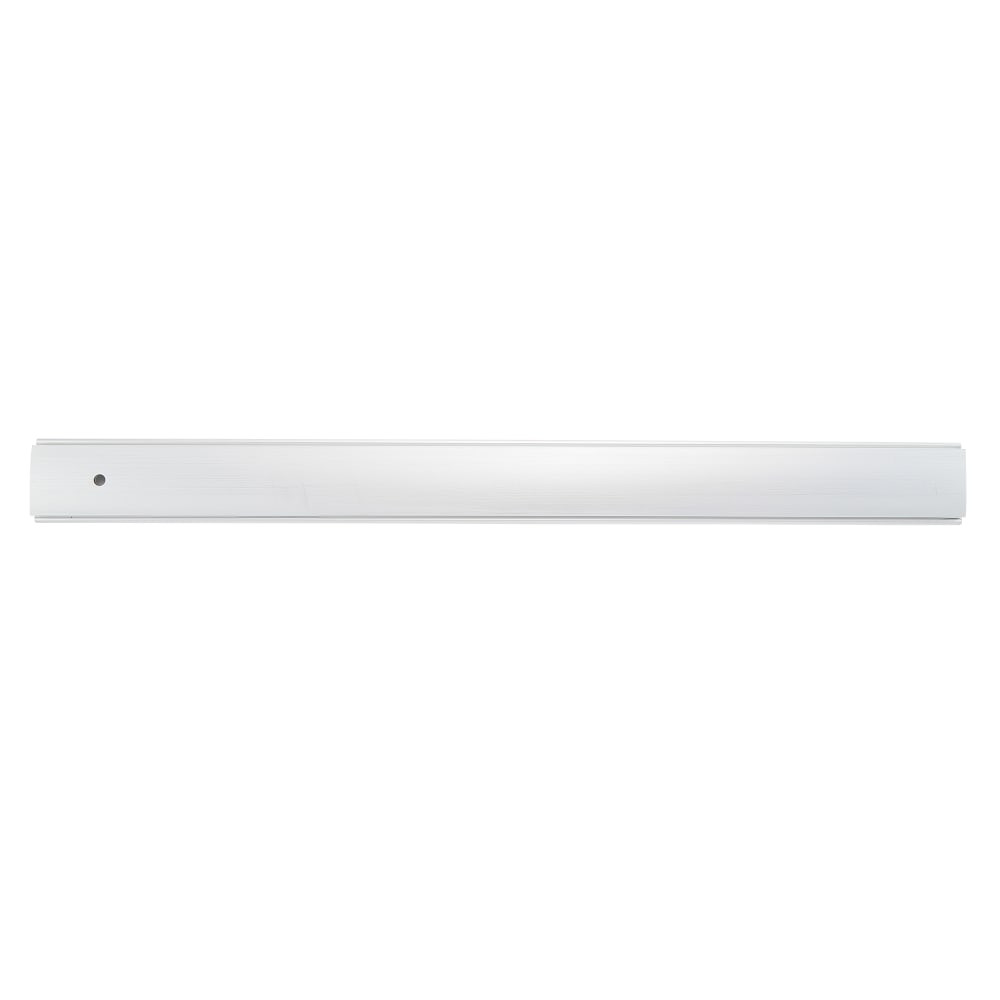

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
