Product Description
QEL98L-BE-12 4 US28 LHR Von Duprin Quiet Electric Latch (QEL) 98 Series Lever SFIC Prep Rim Exit Device Satin Aluminum
The QEL98L-BE-12 4 US28 LHR is a Von Duprin 98 Series rim exit device with L-12 Lever trim in Satin Aluminum (US28/628), sized for 4' doors. SFIC Prep — prepped for Small Format Interchangeable Core. Order SFIC housing and core separately to match your keyway. Prepped for SFIC — order SFIC housing and core separately to match your keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | QEL98L-BE-12 4 US28 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | SFIC Prep |
| Lever Design | L-12 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Satin Aluminum (US28/628) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Prepped for SFIC |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-12 Lever trim — pull operation from outside
- Satin Aluminum finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

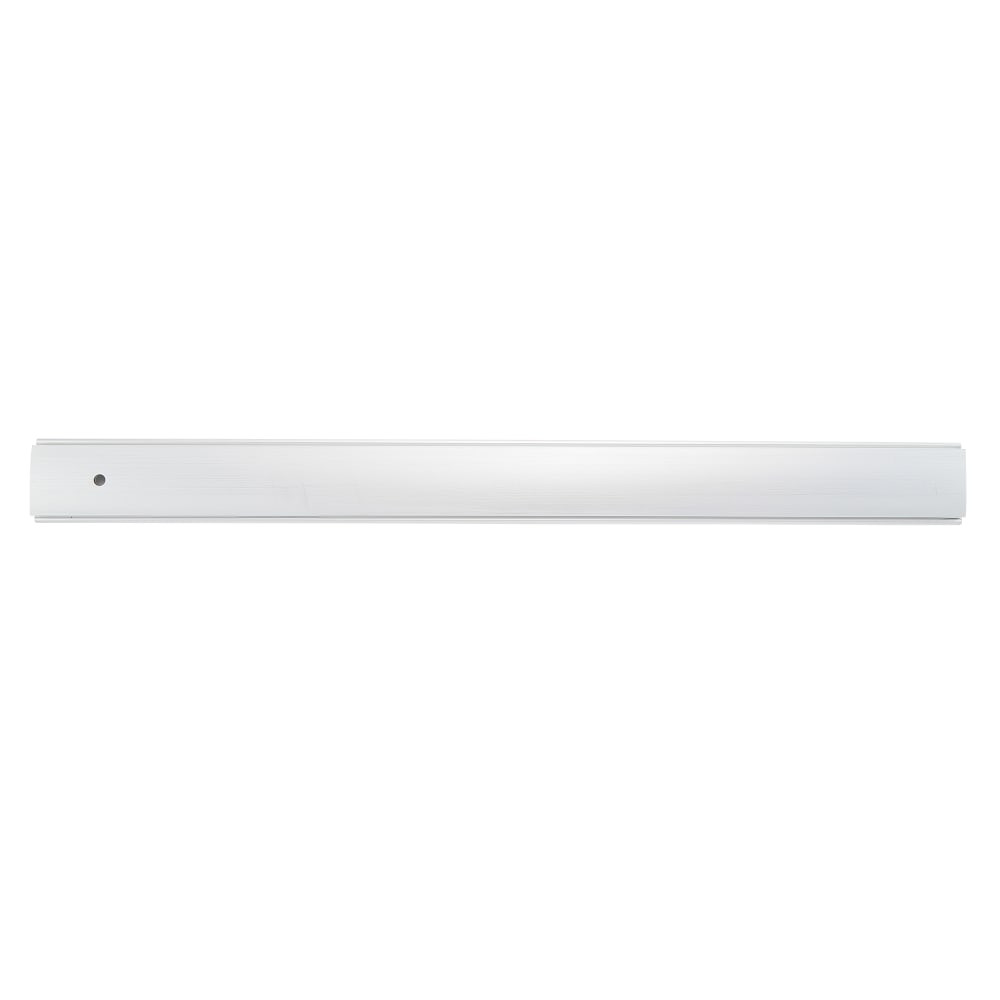

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
