Product Description
QEL98L-KC-02 4 643E LHR Von Duprin 98 Series Key Capture Rim Exit Device in Aged Bronze
The QEL98L-KC-02 4 643E LHR is a Von Duprin 98 Series rim exit device with L-02 Lever trim in Aged Bronze, sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Hex key dogging is standard on non-fire-rated 98 rim devices. That means you can hold the latch retracted during business hours so the door operates as a push/pull. Fire-rated models delete dogging per UL code — if the customer needs doors to stay open on a fire-rated opening, budget for mag holders tied to the fire alarm.
| Specifications | |
|---|---|
| Part Number | QEL98L-KC-02 4 643E LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Key Capture |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Aged Bronze |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-02 Lever trim — pull operation from outside
- Aged Bronze finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking

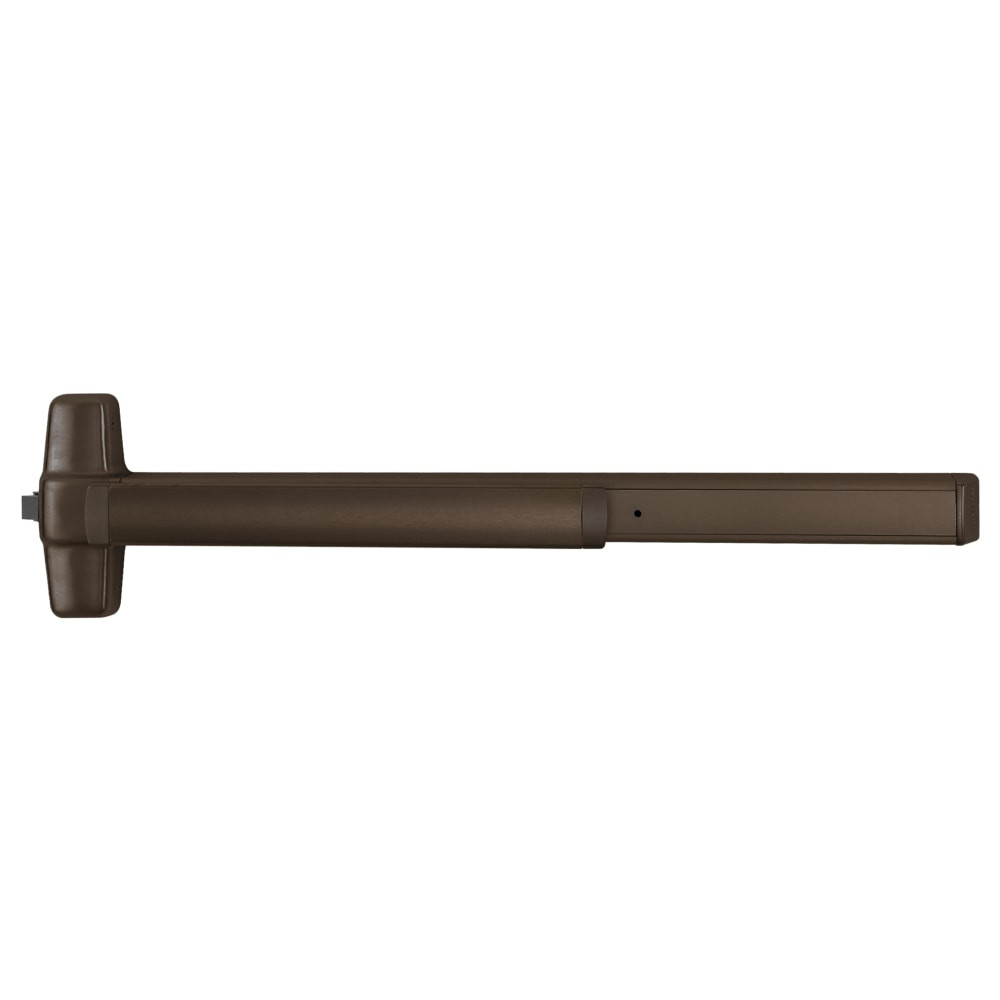

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
