Product Description
QEL98L-KC-07 4 US10B LHR Von Duprin 98 Series Key Capture Rim Exit Device in Oil Rubbed Bronze
The QEL98L-KC-07 4 US10B LHR is a Von Duprin 98 Series rim exit device with L-07 Lever trim in Oil Rubbed Bronze (US10B/613), sized for 4' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 98 rim device is the industry benchmark for architectural-grade panic hardware. If you're speccing a single door with a standard frame, this is the default choice. Rim mechanism latches horizontally into the frame strike on the lock side — simplest installation of any exit device type.
| Specifications | |
|---|---|
| Part Number | QEL98L-KC-07 4 US10B LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Key Capture |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-07 Lever trim — pull operation from outside
- Oil Rubbed Bronze finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking

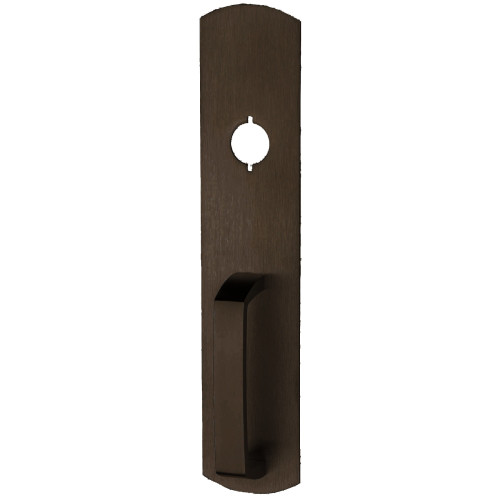

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
