Product Description
QEL9927L-03-F 4 US28 RHR Von Duprin 99 Series Classroom Fire Rated Surface Vertical Rod Exit Device in Anodized Aluminum
The QEL9927L-03-F 4 US28 RHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-03 Lever trim in Anodized Aluminum (US28/628), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9927 surface vertical rod device is the go-to for double-door applications where you need top and bottom latching. On pairs, you'll typically have a 9927 on the active leaf and a mullion or coordinator on the inactive side. Always spec the coordinator if both doors are operable.
| Specifications | |
|---|---|
| Part Number | QEL9927L-03-F 4 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Classroom |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-03 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

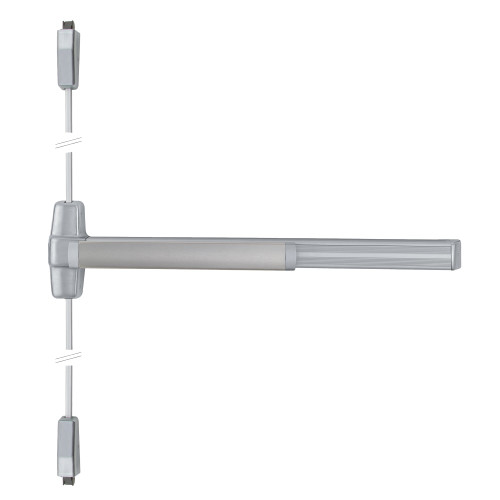

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
