Product Description
QEL9927L-DT-05 3 US28 RHR Von Duprin 99 Series Dummy Trim Surface Vertical Rod Exit Device in Anodized Aluminum
The QEL9927L-DT-05 3 US28 RHR is a Von Duprin 9927 Series Surface Vertical Rod exit device with L-05 Lever trim in Anodized Aluminum (US28/628), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Surface rods take more abuse than concealed rods because they're exposed. On high-traffic openings, check rod guides and bottom bolt alignment on every service call. A loose rod guide is the #1 cause of 9927 field failures — five-minute fix that prevents a callback.
| Specifications | |
|---|---|
| Part Number | QEL9927L-DT-05 3 US28 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9927 |
| Function | Dummy Trim |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Anodized Aluminum (US28/628) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9927 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-05 Lever trim — pull operation from outside
- Anodized Aluminum finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

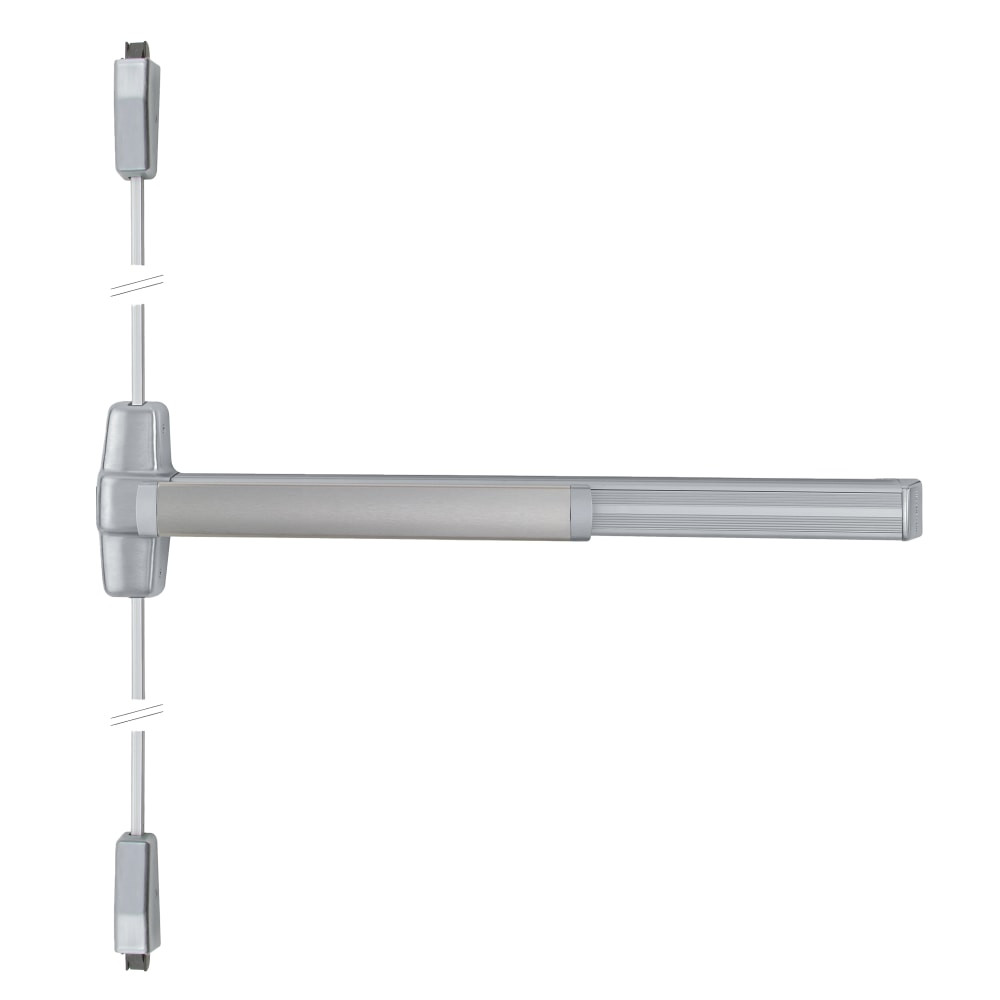

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
