Product Description
QEL9947L-BE-03 4 US3 RHR Von Duprin 99 Series Passage Concealed Vertical Rod Exit Device in Bright Brass
The QEL9947L-BE-03 4 US3 RHR is a Von Duprin 9947 Series Concealed Vertical Rod exit device with L-03 Lever trim in Bright Brass (US3/605), sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: The 9947 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | QEL9947L-BE-03 4 US3 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9947 |
| Function | Classroom |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Bright Brass (US3/605) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9947 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-03 Lever trim — pull operation from outside
- Bright Brass finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

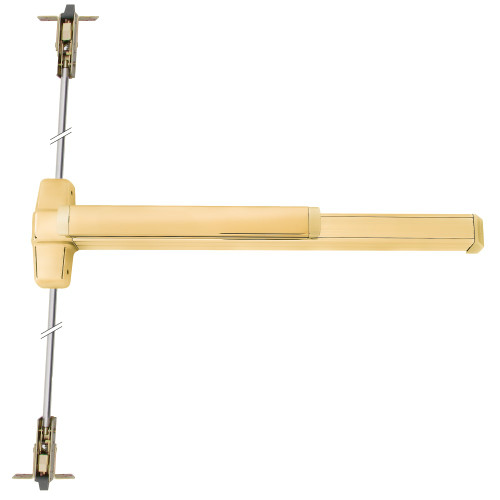

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
