Product Description

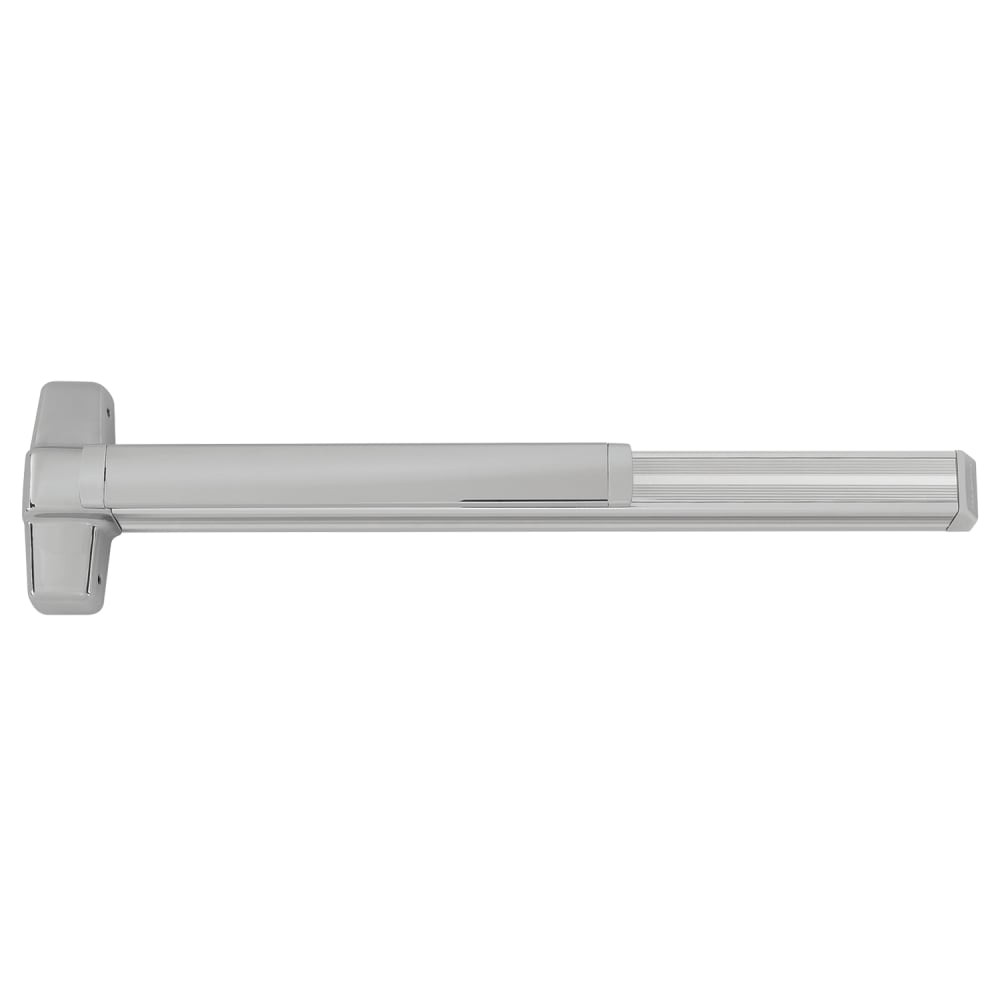

QEL9950WDCL-NL-05-F 3 26D RR Von Duprin 99 Series Night Latch Fire Rated Wood Door CVC Exit Device in Satin Chrome
The QEL9950WDCL-NL-05-F 3 26D RR is a Von Duprin 9950WDC Series Wood Door Concealed Vertical Cable exit device with L-05 Lever trim in Satin Chrome (US26D/626), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Vertical cable devices (9949/9950WDC) are great for applications where rigid rods would be impractical — curved door tops, non-standard door prep, or doors that have seen better days. The cable routes through the door more easily and tolerates slight misalignment better than rigid rods.
| Specifications | |
|---|---|
| Part Number | QEL9950WDCL-NL-05-F 3 26D RR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9950WDC |
| Function | Night Latch |
| Lever Design | L-05 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Chrome (US26D/626) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9950WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- L-05 Lever trim — pull operation from outside
- Satin Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
