Product Description
QEL9975DT-313-3 Von Duprin 9975 Series with 990DT Dummy Trim Mortise Lock Exit Device with Quite Electric Latch in Duranodic Dark Bronze
The QEL9975DT-313-3 is a Von Duprin 9975 Series Mortise Lock exit device in Dark Bronze (313/313), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: Mortise lock exit devices (9975) require a mortise pocket prepped into the door edge. On retrofit jobs, verify the existing mortise prep is compatible with Von Duprin's 9975 body dimensions. A Schlage L-series prep is close but not identical — don't assume cross-compatibility.
| Specifications | |
|---|---|
| Part Number | QEL9975DT-313-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9975 |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Dark Bronze (313/313) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 9975 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- Dark Bronze finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
- Hex key dogging standard — hold latch retracted during business hours

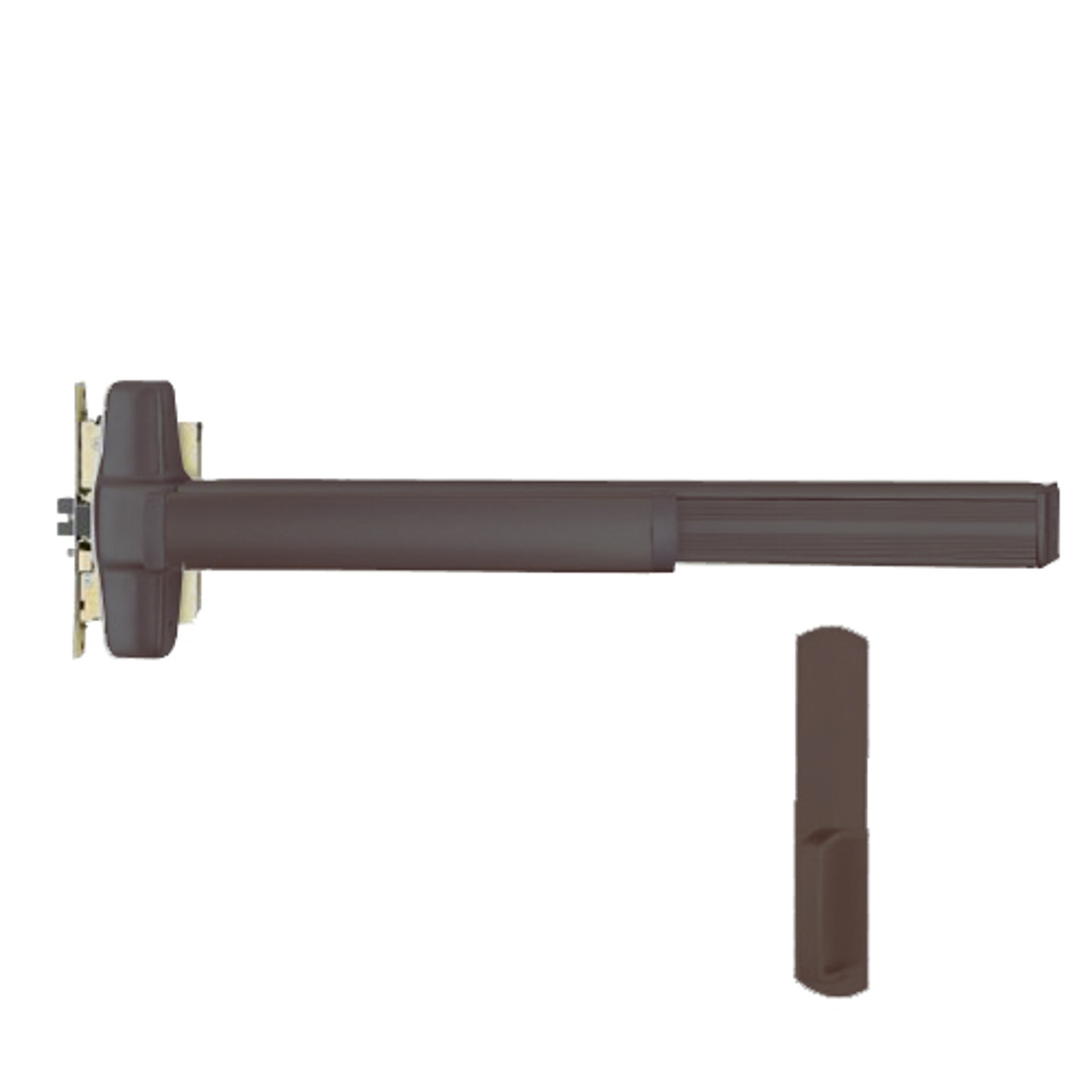

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
