Product Description

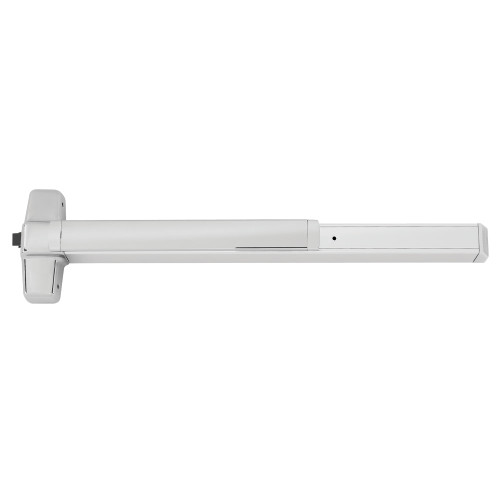

QEL99L-06 4 US26 RHR Von Duprin 99 Series Classroom Rim Exit Device in Polished Chrome
The QEL99L-06 4 US26 RHR is a Von Duprin 99 Series Rim exit device with L-06 Lever trim in Polished Chrome, sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set RHR, field reversible.
Pro-Tip from Our Locksmiths: Rim exit devices mount on the surface of the door without requiring mortise or internal routing. The 99 series rim devices are the easiest to install on retrofit jobs where door prep is limited. Great for quick code compliance upgrades on existing doors.
| Specifications | |
|---|---|
| Part Number | QEL99L-06 4 US26 RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Classroom |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Chrome |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-06 Lever trim — pull operation from outside
- Polished Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
