Product Description

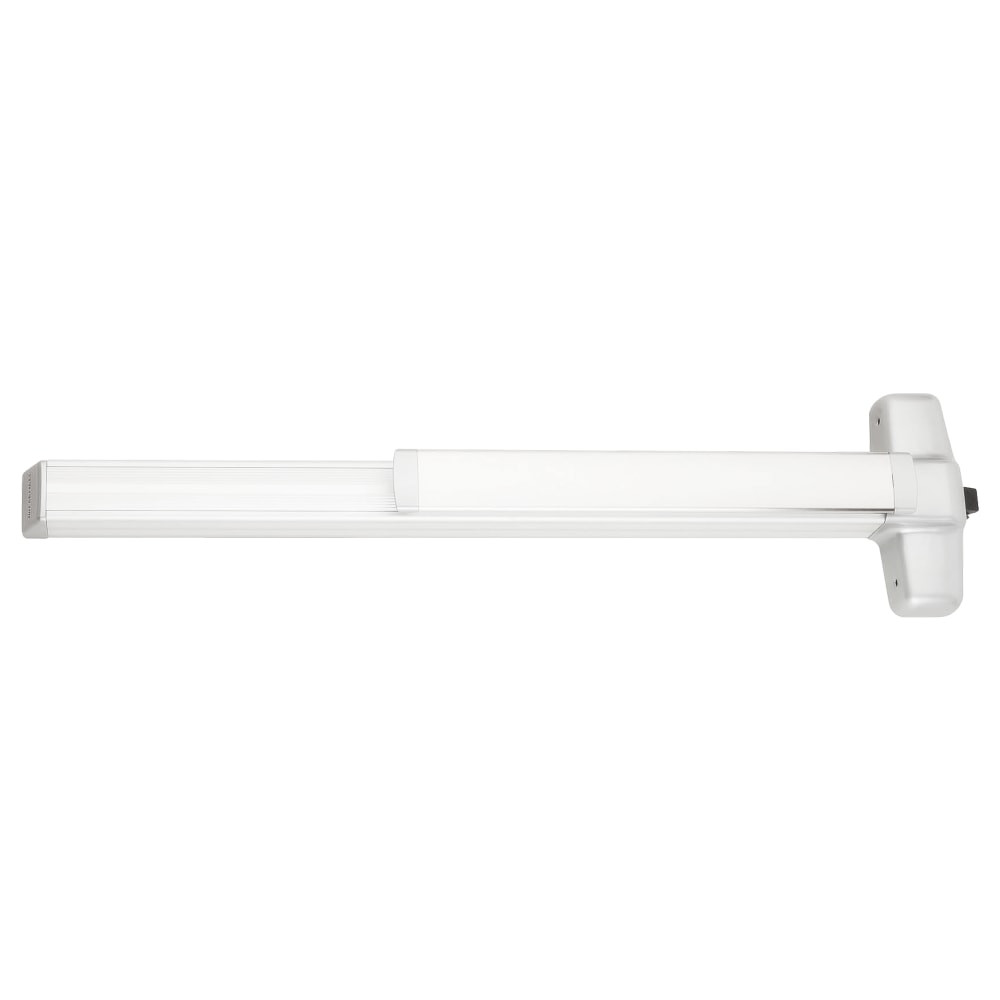

QEL99L-KC-16 3 US26 LHR Von Duprin 99 Series Key Capture Rim Exit Device in Polished Chrome
The QEL99L-KC-16 3 US26 LHR is a Von Duprin 99 Series Rim exit device with L-16 Lever trim in Polished Chrome, sized for 3' doors. Key Capture — key is physically captured in the cylinder when lever is unlocked. Must relock to remove key. Ideal for key management in schools, hospitals, and government buildings. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking. 24VDC power required.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Rim devices are visible on the door interior, so they're typically used on utilitarian doors (back exits, service doors, storage rooms) rather than customer-facing entrances. But they're reliable, affordable, and quick to install — spec them when aesthetics aren't the priority.
| Specifications | |
|---|---|
| Part Number | QEL99L-KC-16 3 US26 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 99 |
| Function | Key Capture |
| Lever Design | L-16 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Chrome |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
| Electronics | Quiet Electric Latch Retraction |
- Von Duprin 99 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- L-16 Lever trim — pull operation from outside
- Polished Chrome finish
- Quiet Electric Latch Retraction — QEL motor-driven latch retraction provides quiet, ADA-compliant remote unlocking
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
