Product Description

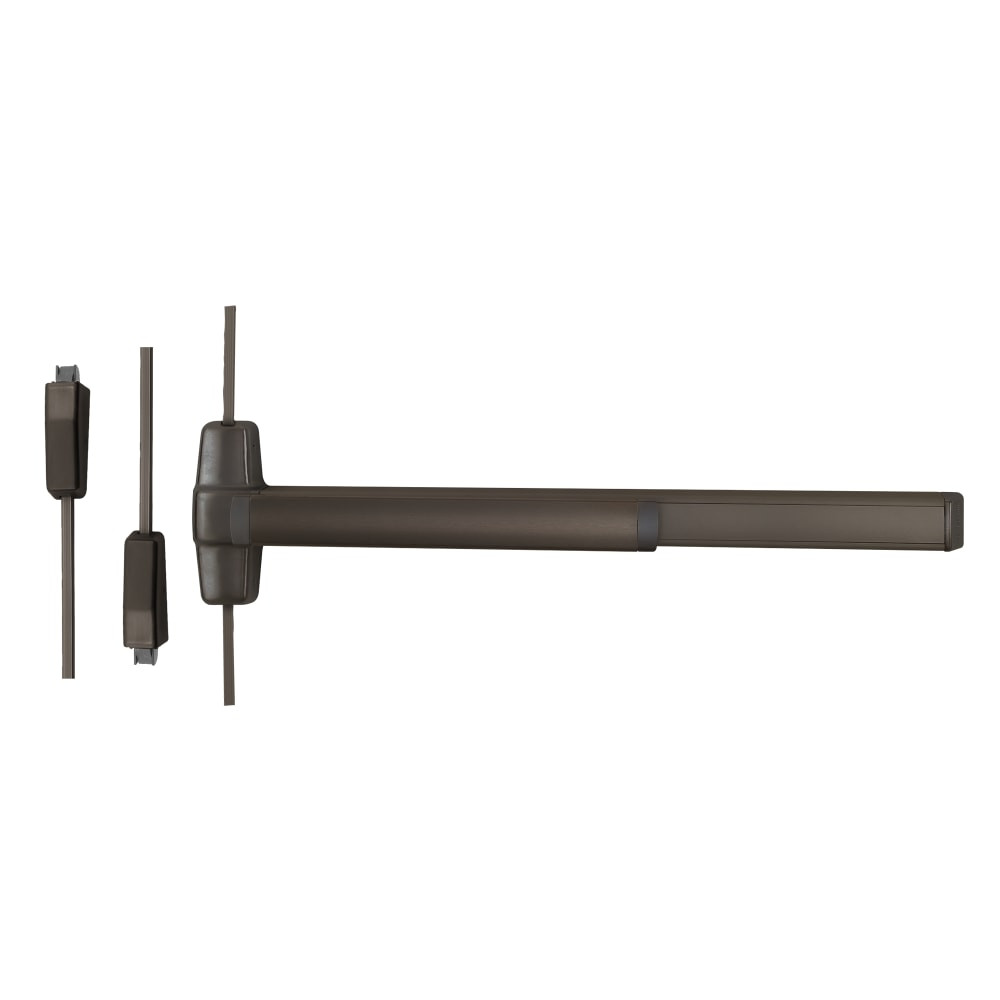

RX9827L-17-F 4 643E LHR Von Duprin 98 Series Classroom Fire Rated Surface Vertical Rod Exit Device in Aged Bronze
The RX9827L-17-F 4 643E LHR is a Von Duprin 9827 Series Surface Vertical Rod exit device with L-17 Lever trim in Aged Bronze, sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Surface vertical rod devices (9827) have rods visible on the door surface running to top and bottom bolts. When measuring for replacement, check rod length — 3' and 4' doors need different rod kits. Also verify header and threshold strike condition before quoting.
| Specifications | |
|---|---|
| Part Number | RX9827L-17-F 4 643E LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9827 |
| Function | Classroom |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Aged Bronze |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Electronics | Request to Exit |
- Von Duprin 9827 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-17 Lever trim — pull operation from outside
- Aged Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
