Product Description
RX9875L-DT-06 3 US3 LHR Von Duprin 98 Series Dummy Trim Mortise Lock Exit Device in Bright Brass
The RX9875L-DT-06 3 US3 LHR is a Von Duprin 9875 Series Mortise Lock exit device with L-06 Lever trim in Bright Brass (US3/605), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: The 9875 is the most complex exit device in the Von Duprin lineup. It has the most moving parts and requires the most precise door prep. When quoting 9875 jobs, add time for mortise pocket verification and potential adjustment. Get it right and it's bulletproof — rush it and you'll be back.
| Specifications | |
|---|---|
| Part Number | RX9875L-DT-06 3 US3 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9875 |
| Function | Dummy Trim |
| Lever Design | L-06 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Finish | Bright Brass (US3/605) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 9875 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Mortise Lock (mortise body recessed into door edge)
- L-06 Lever trim — pull operation from outside
- Bright Brass finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

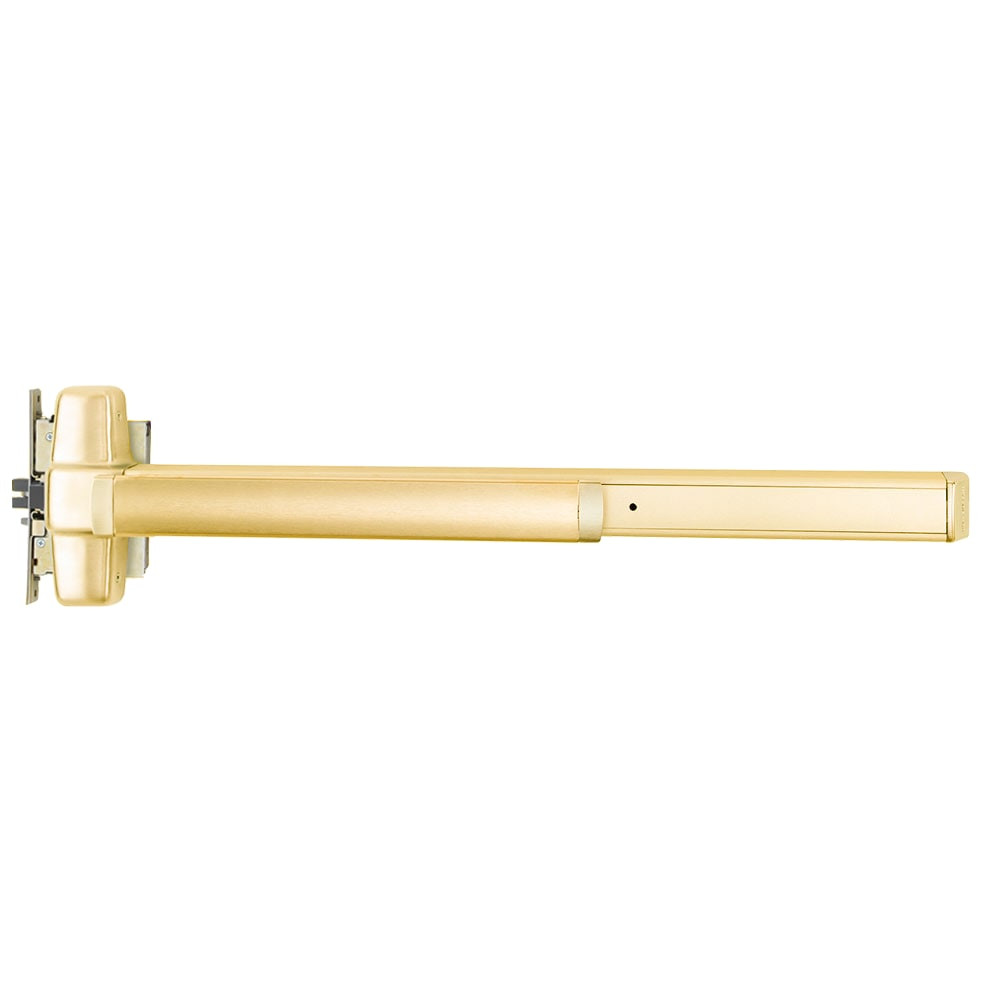

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
