Product Description
RX98DT 4 315 Von Duprin Request to Exit (RX) 98 Series Dummy Trim Rim Exit Device Polished Bronze
The RX98DT 4 315 is a Von Duprin 98 Series rim exit device in Polished Bronze, sized for 4' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
Request to Exit — Request to Exit switch signals the access control system when the exit device is activated. 24VDC.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: When quoting 98 rim devices, check the frame for strike compatibility. The 98 uses a standard rim strike, but on hollow metal frames you may need a longer lip strike if the frame rabbet is deeper than standard. Most callbacks on rim devices are strike alignment — get it right at install.
| Specifications | |
|---|---|
| Part Number | RX98DT 4 315 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 98 |
| Function | Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Polished Bronze |
| Door Size | 4 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
| Electronics | Request to Exit |
- Von Duprin 98 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Polished Bronze finish
- Request to Exit — Request to Exit switch signals the access control system when the exit device is activated
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

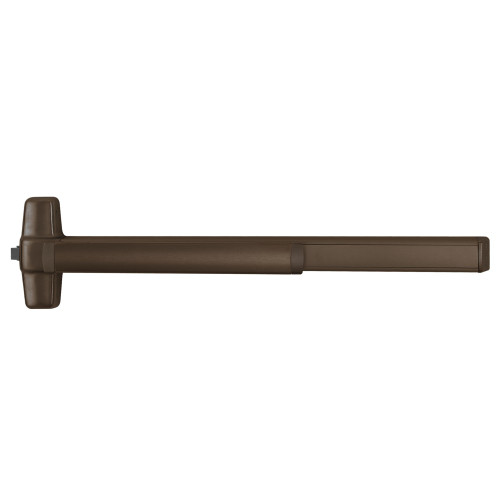

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
